MK500 Mini Skid Steer Tracked Loader
MK500 Mini Skid Steer Tracked Loader
MK500 mini skid steer tracked loader is equipped with Kubota Engine 25HP water cool three cyliners engine ,it works more powerful .
- Release Date:July 04 , 2022
- Category: Construction Loader
- Tags: mini skid steer for sale | Kubota Engine skid steer for sale | skid steer price |
MK500 is highly maneuverable, small and versatile machine, it is the right choice for your doing a little bigger job .
Replace manual labor, toss out the hand tools and get more done in hard-to-access work areas. Easy-to-use mini MK500 loader travel and work where other machines can’t, making them a popular choice for landscapers, contractors, renters and others. Don’t be fooled by the small size. They do serious work: digging, trenching, tilling, moving material and more.MK500 is with Kubota engine ,trust him!
Top Features
Superior Performance
Attachment Versatility
Ride-On/Walk-Behind Convenience
Compact Size
Minimal Ground Disturbance
|
Item |
Metric |
Inch |
|
Max working height |
2420 mm |
95.3 inch |
|
Max pin height |
2099 mm |
82.7 inch |
|
Max dump height |
1617 mm |
63.7 inch |
|
The highest point discharge distance |
615 mm |
24.2 inch |
|
Bucket swing angle |
79° |
79° |
|
Bucket unloading angle |
36° |
36° |
|
Opening-closing angle |
43° |
43° |
|
Angle of departure |
30° |
30° |
|
Total height |
1607 mm |
63.3 inch |
|
The height from the ground |
300 mm |
11.8 inch |
|
Wheelbase |
1065 mm |
41.9 inch |
|
No bucket length |
2200 mm |
86.6 inch |
|
Total width 1033 |
1033 mm |
40.7 inch |
|
Bucket width |
1140 mm |
44.9inch |
|
Total length（L）（with bucket） |
2752 mm |
108.4 inch |
|
Turning radius (R) |
2198 mm |
86.5 inch |
Main performance parameters:
|
Engine |
Model |
D1105-EF02 |
|||||
|
Rated power |
18.2KW/25HP |
||||||
|
Rotating speed（rpm） |
3000 |
||||||
|
Noise（Db） |
≤95 |
||||||
|
Hydraulic System |
Hydraulic pressure（Mpa） |
20 |
|||||
|
Cycle time（s） |
Raise |
Dump |
Lower |
||||
|
3.89 |
1.6 |
3.35 |
|||||
|
Performance parameters |
|
Metric |
inch |
||||
|
Load weight (kg) |
480 Kg |
667 Lb |
|||||
|
Bucket capacity |
0.14 m3 |
4.95 ft3 |
|||||
|
Max lifting power |
1258Kg |
2795.6 Lb |
|||||
|
speed |
0-8Km/h |
0-4.972mlie/h |
|||||
|
Operating weight |
1775kg
|
3944lb
|
|||||
|

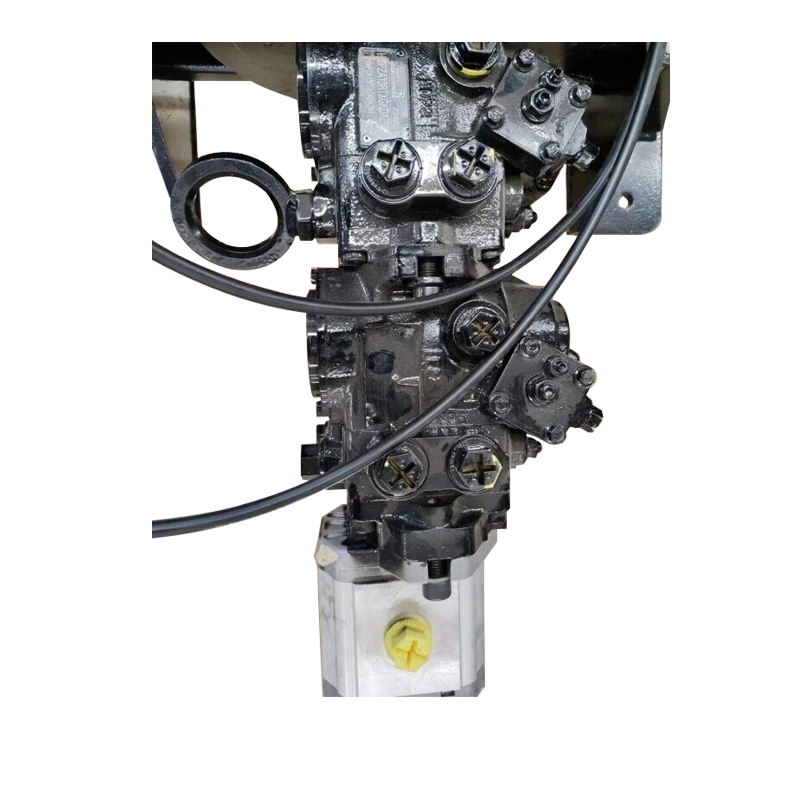

Main pump |
Qty: 2+1 |
||||||
|
Flow of main pump |
67.2L/min |
||||||
|
Valve |
Qty :2 |
||||||

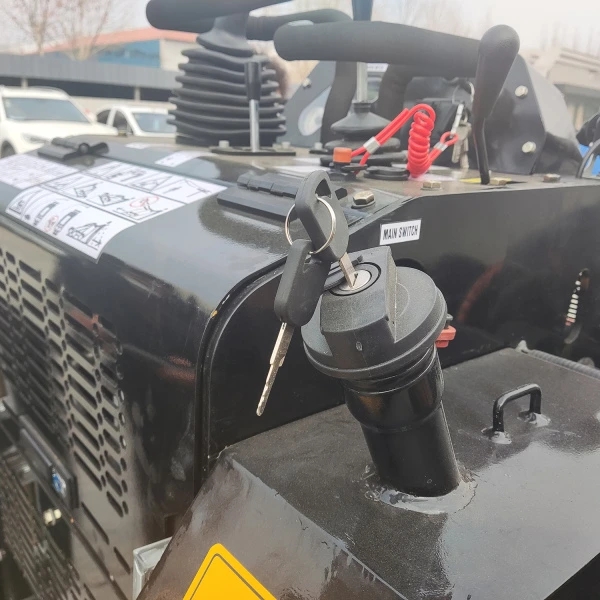

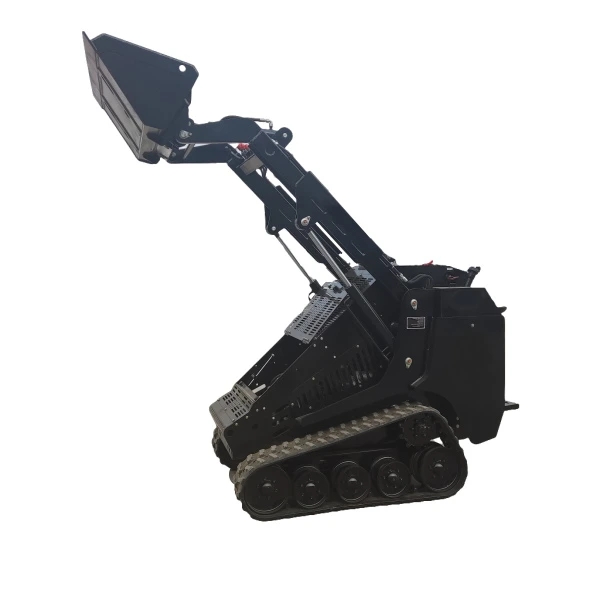

MK500 Mini Skid Steer Tracked Loader Images
Contact us for a quote！
