50HP 4WD Compact Tractor
50HP 4WD Compact Tractor
50HP is mall tractor but big Impact,the compact tractors commonly used for: Lawn & Garden, Agriculture, Landscaping & Grounds Care, Golf & Sports Turf
- Release Date:November 04 , 2022
- Category: Agricultural Machinery
- Tags: small tractor | garden tractor | compact tractors for sale |
50HP 4WD Compact Tractor
Do-it-yourselfers, landscapers and small farmers unite - these small tractors can tackle any task.
Commonly used for: Lawn & Garden, Agriculture, Landscaping & Grounds Care, Golf & Sports Turf
Well-Equipped
User-friendly controls, with forward/reverse pedals, standard 4-wheel drive
Convenient Operation
Auto Connect Drive-over Mower Deck, Quik-Park easy-attach loader, Match Quick Hitch compatibility.
Affordable Ownership
Manageable monthly payments, reasonable maintenance costs, excellent resale value.
50HP 4WD Compact Tractor Parameter
|
驱动型式 Driven model |
4WD |
|
发动机 Engine |
莱动4L100 LAIDONG |
|
排放标准 Emission Standards |
国二 Ⅱ stages |
|
发动机功率(hp) Engine power |
50 |
|
离合器 Clutch |
单作用 Double-stage type |
|
动力输出转速 PTO speed |
540/720rpm |
|
动力输出花键数 PTO spline number |
6 |
|
标定牵引力 KN Max.rated drawing power |
≥11.5KN |
|
结构质量（kg） weight |
1550kg |
|
转向形式 Steering |
液压转向 hydraulic steering |
|
档位 Gears |
8+2 |
|
速度范围（km/h） Speed |
前进1.78-26.93 后退 2.41-11.6 |
|
轮胎型号 Tires size |
7.50-16/11.2-28 |
|
轴距 Wheel Base |
1810mm |
| 外形尺寸（L*W*H）mm Overall dimension | 3640*1620*2240 |
|
选装 Optional equipment |
前配重 Front ballast |
|
后配重（一层） Rear ballast（one layer） |
|
|
安全架 ROPS |
|
|
遮阳棚 Canopy |
|
|
档位 8+8 Gear 8+8 |
|
|
双作用 Double-stage type |
|
|
多路阀（一组） 1 groups of hydraulic output |
|
|
多路阀（两组） 2 groups of hydraulic output |
|
|
汽刹 Air compressor |
|
|
外置强压提升器 External Forced lifter |
|
|
摆式牵引 Swing traction |
|
|
风扇驾驶室 Fan cab |
|
|
暖风驾驶室 Heating cab |
|
|
轮胎7.5-16/11.2-28 Tires 7.5-16/11.2-28 |
|
|
铁框架包装 Iron frame packaging |

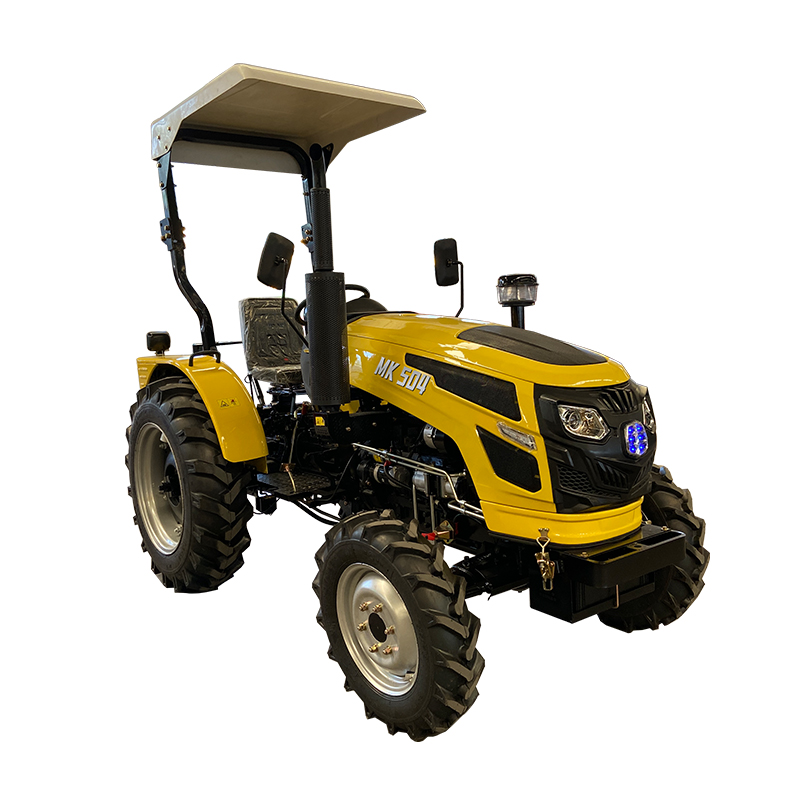

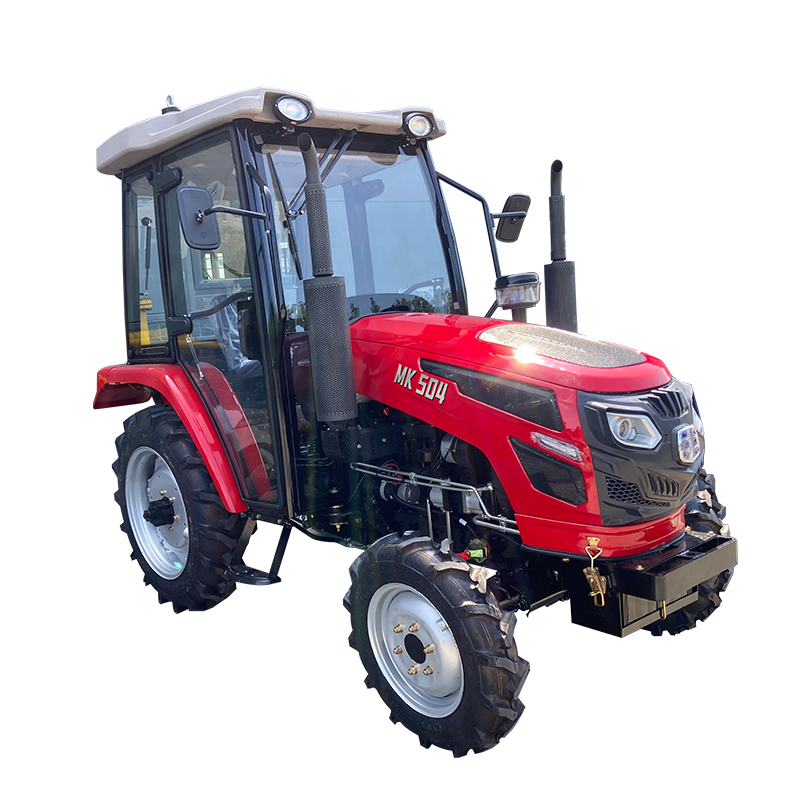

50HP 4WD Compact Tractor Images
Contact us for a quote！
