Mechanical Rotary Tillage Fertilizing Precise Drill Planter
Mechanical Rotary Tillage Fertilizing Precise Drill Planter
The rotary tillage drill precise planter can complete multiple processes such as stubble removal rotary tillage, fertilization, sowing, and suppression at one time on the field after the straw is cho
- Release Date:November 21 , 2022
- Category: Agricultural Machinery
- Tags: row planter | drill seeder | drill planter |
Mechanical Rotary Tillage Fertilizing Precise Drill Planter
2BF series seed drill is a multi-functional mechanical precision seeder, equipped with multi-functional seeding wheel and seed adjuster, can realize the precision of wheat, barley, oats, rye and other grains of different sizes through sliding plate division Sowing can achieve stepless adjustment of 0.5-450 kg/ha seeding rate. According to the soil and other conditions, various openers such as chisel type and disc can be selected. Its elastic profiling equipment ensures the consistency of drill depth. The seeder can It can be used independently, and can also be used in conjunction with rotary tillers, drive harrows and other land preparation machines.
Mechanical Rotary Tillage Fertilizing Precise Drill Planter Parameter
|
TECHNICAL SPECIFICATIONS |
|||
|
Product model |
UNIT |
2BFX-10/10 ( 220 ) |
2BFX-12/12 ( 264 ) |
|
Total Lenght (L) |
mm |
1580 |
2290 |
|
Total Width W) |
mm |
2460 |
2790 |
|
Total Height (H) |
mm |
1250 |
1200 |
|
Weight |
kg |
770 |
860 |
|
Matching power |
hp |
≥90 |
≥100 |
|
Working width |
mm |
2200 |
2640 |
|
Seed/Fertilizer |
ROWS |
10 |
12 |
|
Row Space |
cm |
22~35 |
22~35 |
|
Working depth |
cm |
10~12/2~4 |
10~12/2~4 |
|
working speed |
km/h |
3~ 5 |
3~5 |
|
Operation efficiency |
0.066hectare/Hour |
10~16 |
12~ 20 |

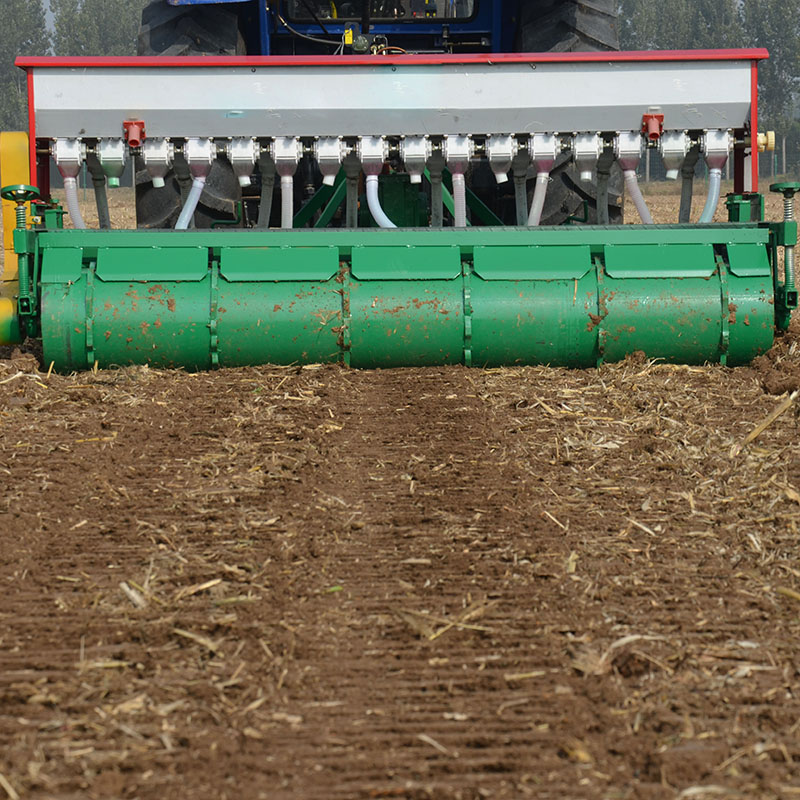

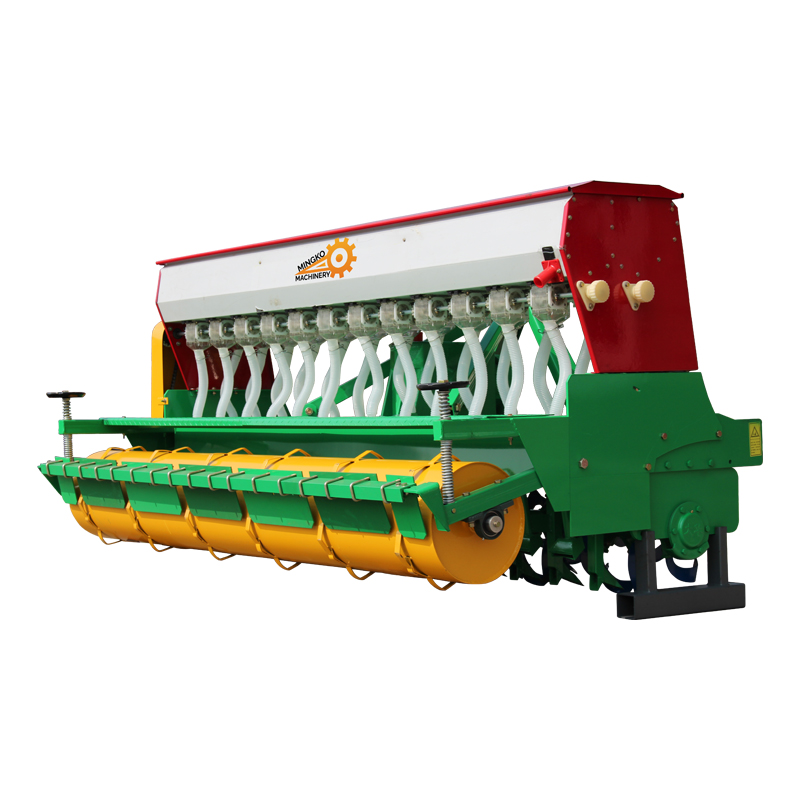

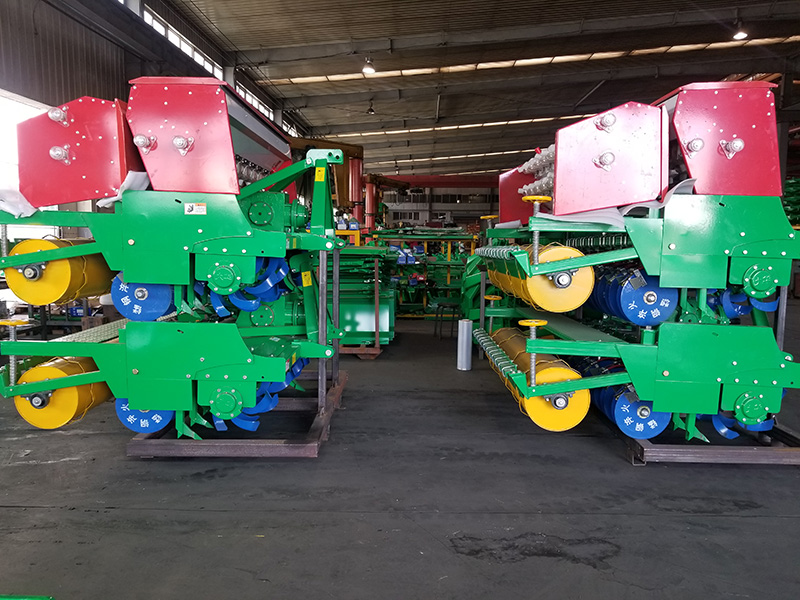

Mechanical Rotary Tillage Fertilizing Precise Drill Planter Images
Contact us for a quote！
