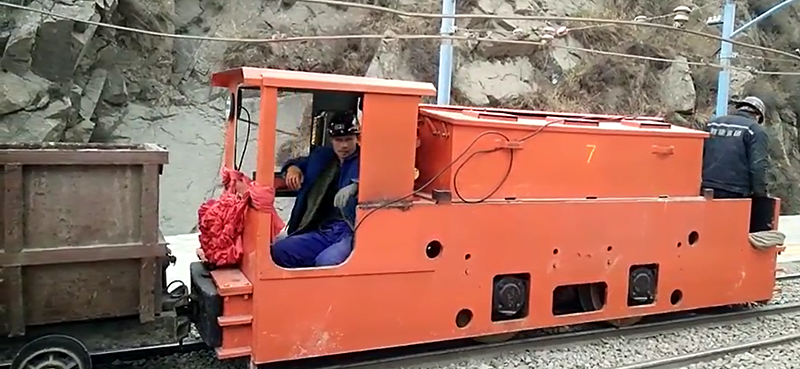

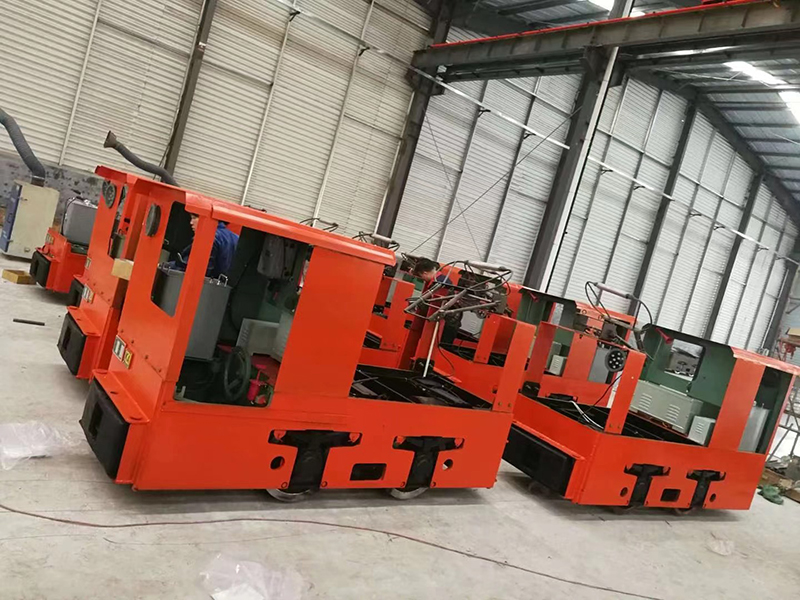

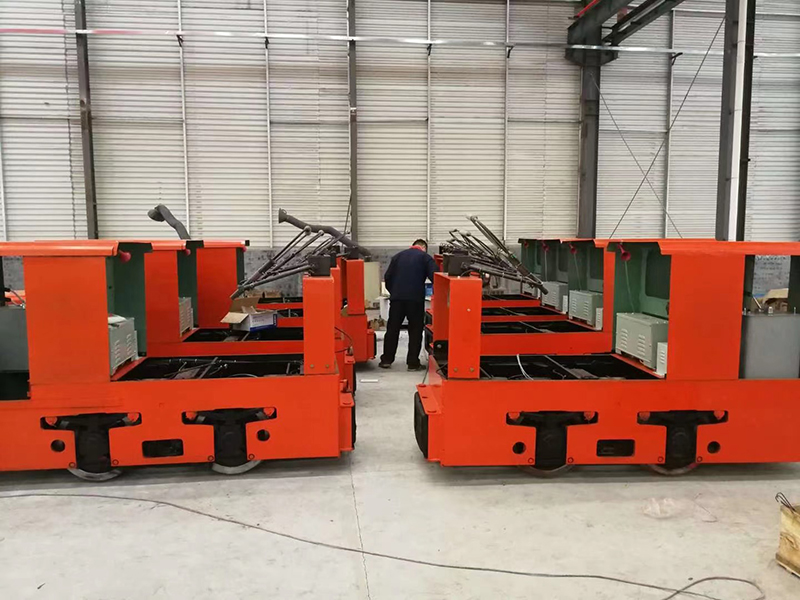

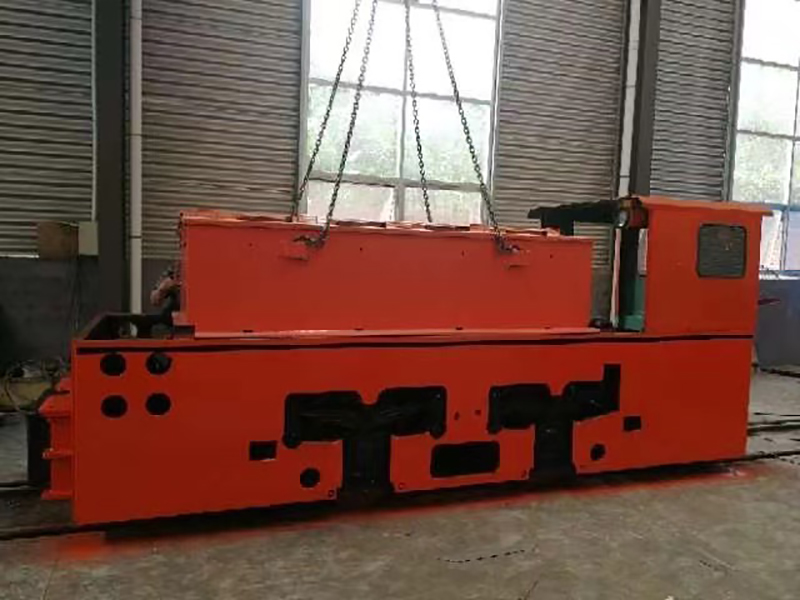

CTY5 Tone Battery Mining Locomotive
Mining electric locomotive is mainly used for long-distance transportation of underground transportation roadway and ground. It is equivalent to the electric locomotive head in railway transportation. It drives the train composed of mine car or man car on the track to complete the transportation of coal, gangue, materials, equipment, and personnel. There are surface locomotives and
underground mining locomotives.
Mingko Machinery makes several basic types of locomotives, such as trolley/battery electric locomotives, flameproof mining battery/trolley locomotives, coal mine battery locomotive, diesel locomotives for mining, and so on. They are all can be customized.
CTY5 Tone Battery Mining Locomotive Parameter
|
Model |
CTY5/6,7,9G |
|
|
Self Weight |
5T |
|
|
Track Gauge |
60.762 or 900mm |
|
|
TIraction |
7.06kN |
|
|
max Speed |
12.26kN |
|
|
max. Traction |
7km/h |
|
|
Power Supply Device |
Voltage |
90V |
|
|
Capacity |
385Ah |
|
Power |
7.5 kW*2 |
|
|
Size |
Length |
2850mm |
|
|
Width |
920,108211220mn |
|
|
Height |
1550mm |
|
|
Wheelbase |
850mm |
|
|
Wheel Diameter |
Φ520mm |
|
Min. TurningRadius |
6m |
|
|
Controller |
Resistance orChopped wave |
|
|
Brake Mode |
Mechanism or hydraulic pressure |
|
Contact us for a quote！
