15 Kg Light Steel Rail
15 kg/m light steel rail is widely used for mine transport railroad line.
Mingko supply all kinds of Chinese standard steel rails in stock, can supply other special international standard type of rails, also can make mold to produce special type of steel rails in larger quantity.8kg/12kg/15kg/18kg/22kg/24kg/30kg light steel rails for mine using
Mingko design railroad line as your requirement, and can build small type mining railway line and crane moving line, also can supply the all workable fasteners.
15 Kg Light Steel Rail Parameter

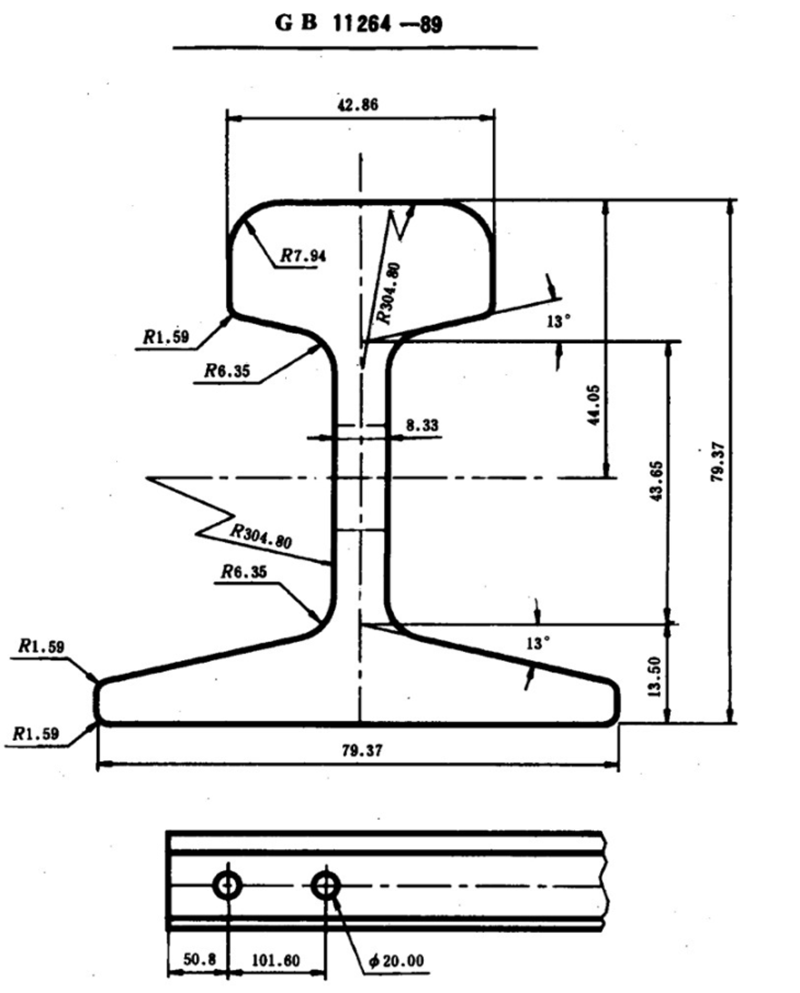

Standard:GB11264-89
size
Head(mm)
Height
(mm)
Bottom
(mm)
Web
(mm)
Weight
(kg/m)
Material
(mm)
Length
(mm)
GB6KG
25.4
50.8
50.8
4.76
5.98
Q235B
6-12
GB9KG
32.1
63.5
63.5
5.9
8.94
Q235B
6-12
GB12KG
38.1
69.85
69.85
7.54
12.2
Q235B/55Q
6-12
GB15KG
42.86
79.37
79.37
8.33
15.2
Q235B/55Q
6-12
GB22KG
50.3
93.66
93.66
10.72
22.3
Q235B/55Q
6-12
GB30KG
60.33
107.95
107.95
12.3
30.1
Q235B/55Q
6-12
Standard:YB222-63
8KG
25
55
54
7
8.42
Q235B
6-12
18KG
40
80
80
10
18.06
Q235B/55Q
6-12
24KG
51
107
92
10.9
24.46
Q235B/55Q
6-12
Q235B
Mechanical property
Chemical composition
Yield strength
Tensile strength
Elongation
Hardness
C
Si
Mn
S
P
MPa
kg/mm2
MPa
kg/mm2
min
HB
≤
≤
≤
24
375-460
38-47
26%
0.12-0.22
0.3
0.30-0.70
0.05
0.045
55Q
Mechanical property
Chemical composition
Yield strength
Tensile strength
Elongation
Hardness
C
Si
Mn
S
P
Cu
MPa
kg/mm2
MPa
kg/mm2
min
HB
≤
≤
≤
≤
685min
197
0.5-0.6
0.15-0.35
0.6-0.9
0.05
0.045
0.4

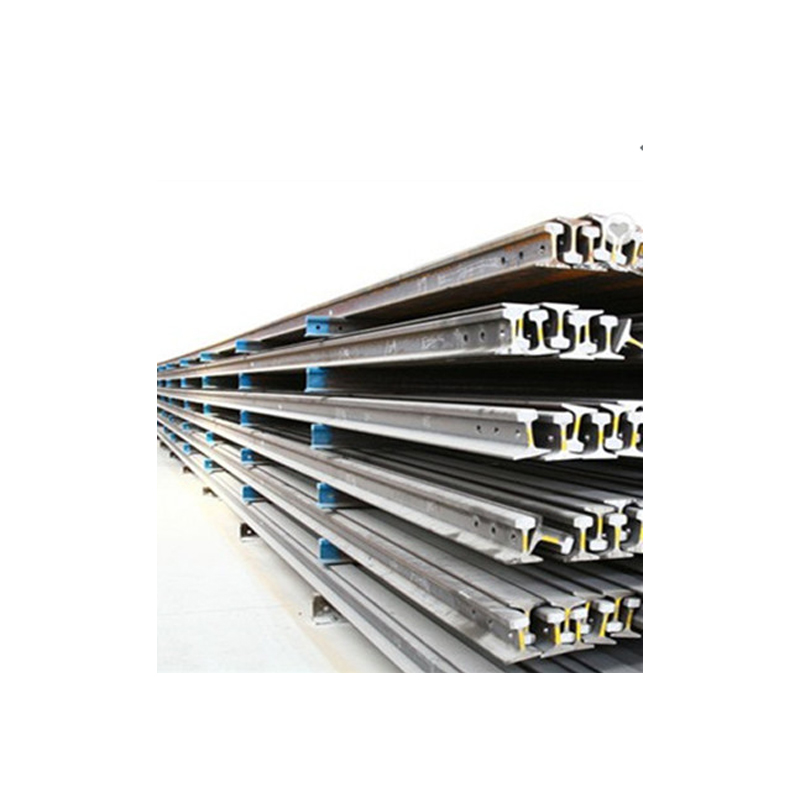

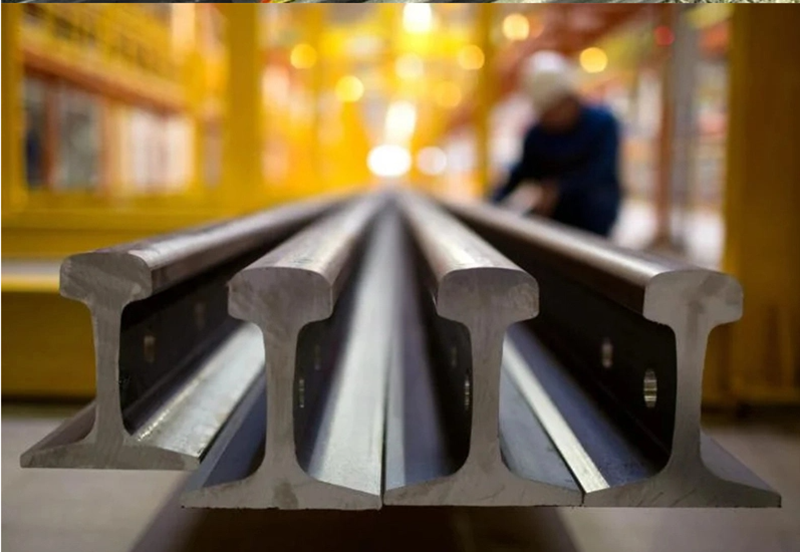

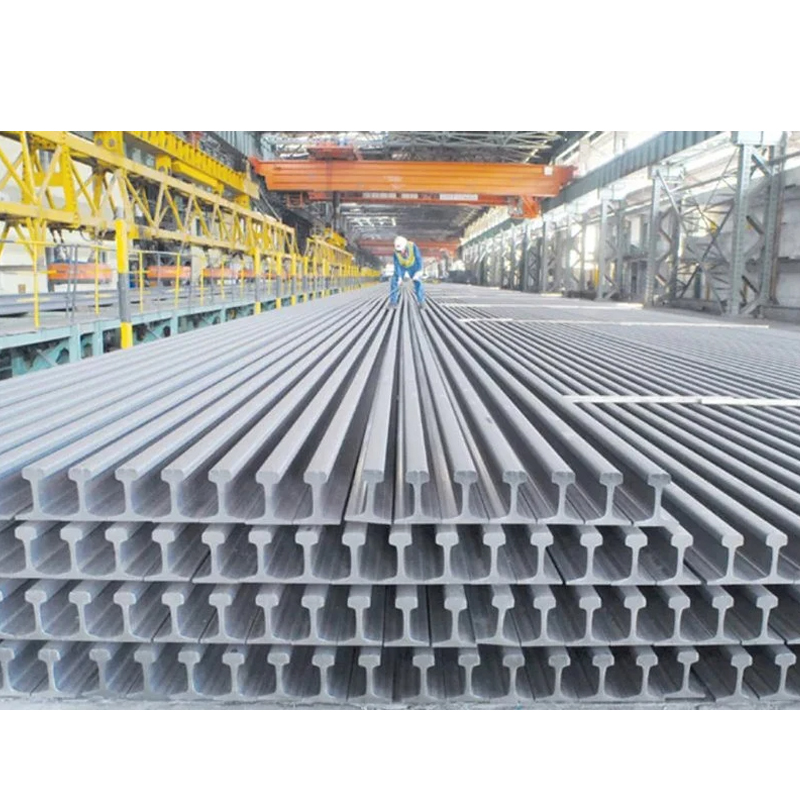

15 Kg Light Steel Rail Images
