22/24/30 Kg Light Steel Rail
22/24/30 Kg Light Steel Rail
Light Steel Rail Railroad Steel is one of steel rail, railway track, mining rail,etc.
- Release Date:February 10 , 2023
- Category: Railway Equipment
- Tags: steel railway track for sale | steel rail price | steel t rail |
22/24/30 Kg Light Steel Rail
22/24/30KG Light Steel Rail Railroad Steel is one of steel rail, railway track, mining rail,etc. The standard of 30KG Light Steel Rail Railroad Steel usually composed by two joint bars, rails fixed to the sleepers, rail pad under the sleepers for the road, including roadbed, rail connection parts,etc.
Full range of light rail include 8-30kg/m, length can be made 6-12m,widely used in mining.
22/24/30 Kg Light Steel Rail Parameter
Name
of Commodity
Specificaton
Materials
Standard of Products
Theory
Weight
Length of Dimension(m)
Packed in bundle with iron wire (pcsbundle)
light Rail
4kg/m
Q235
Q/YYG001-2008
4kg/m
6,8,9,10
75
8kg/m
Q235
Q/YYG001-2008
8.42kg/m
55
12kg/m
Q235
GB11264-89
12.2kg/m
36
15kg/m
Q235/55Q/50Q
GB11264-89
15.2kg/m
28
18kg/m
Q235/55Q/50Q
YB222-63
18.02kg/m
21
22kg/m
Q235/55Q/50Q
GB11264-89
22.3kg/m
21
24kg/m
Q235/55Q/50Q
QYYG001-2008
24.46kg/m
21
30kg/m
Q235/55Q/50Q
GB11264-89
30.1kg/m
15

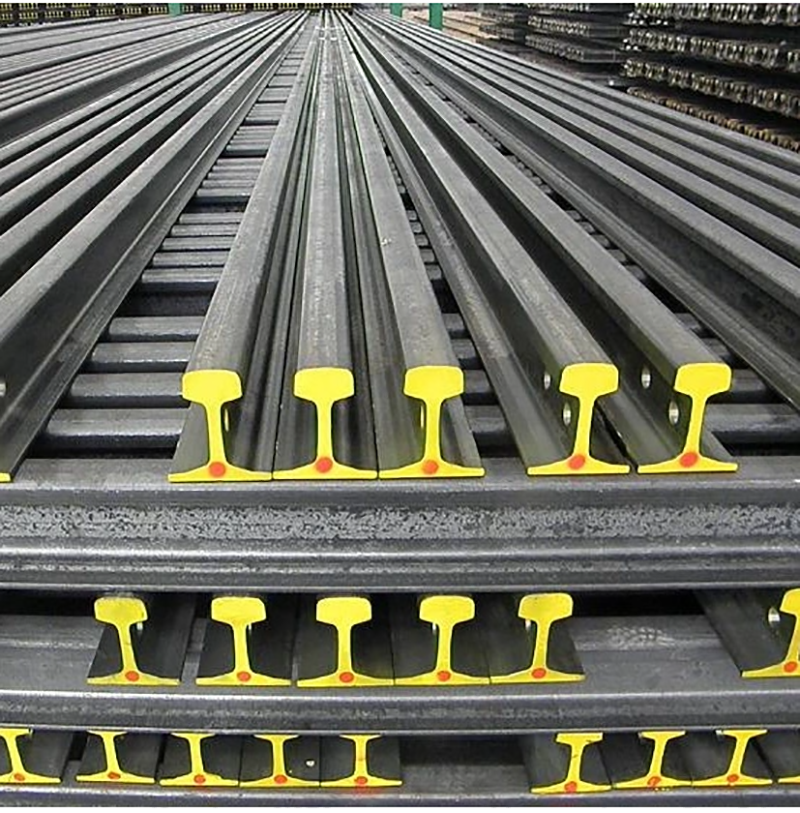

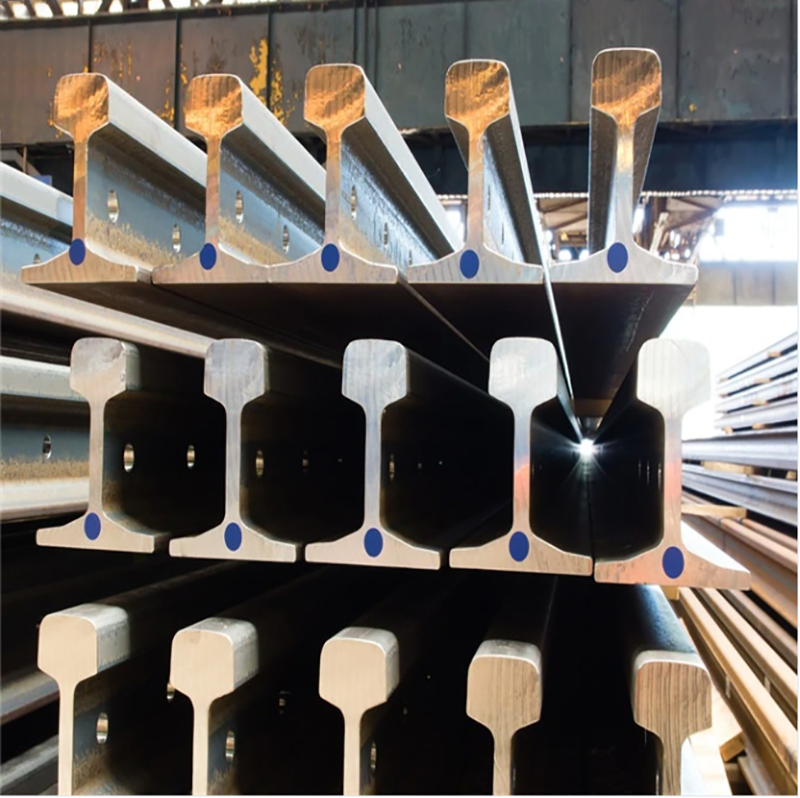

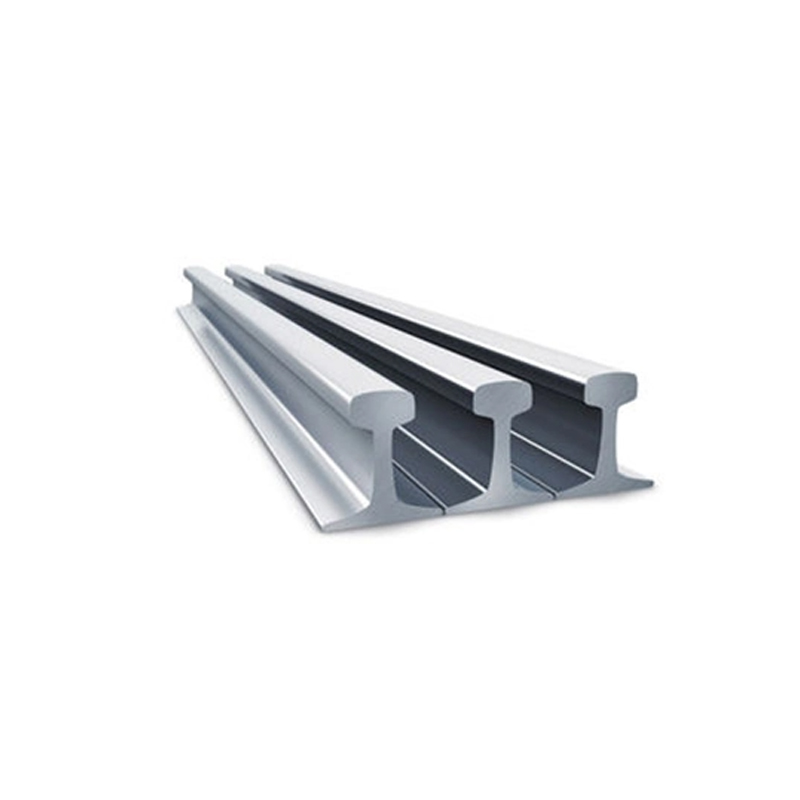

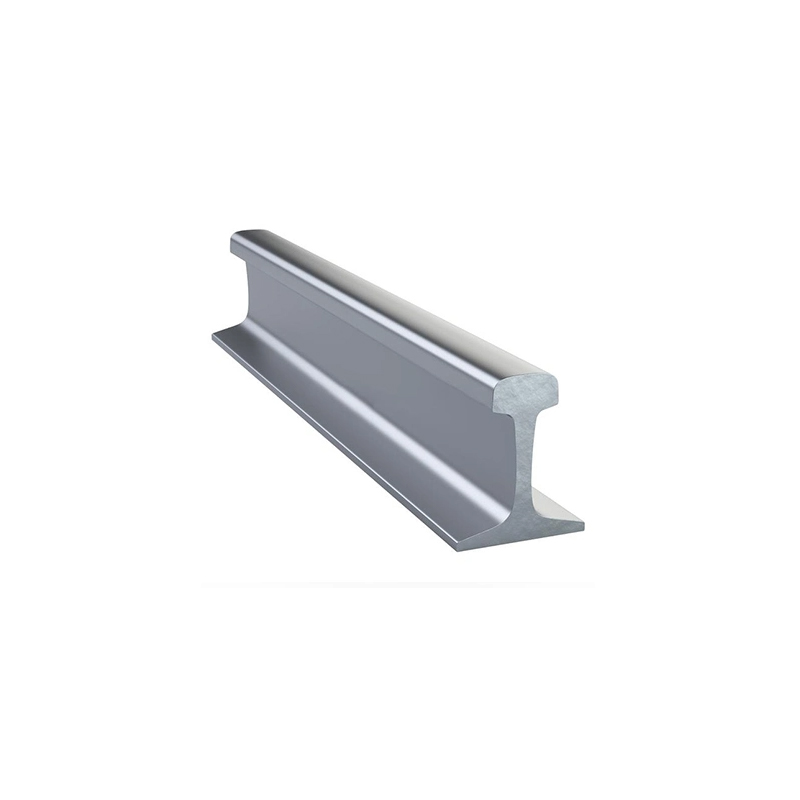

22/24/30 Kg Light Steel Rail Images
Contact us for a quote！
