38/43/50/60/75Kg Heavy Steel Rail
38/43/50/60/75Kg Heavy Steel Rail
Heavy Rails Materials: U71Mn, U71, 45Mn Length:12m or 12.5m Fast delivery Competitive price
- Release Date:March 15 , 2023
- Category: Railway Equipment
- Tags: mine rail | railroad steel | railway steel for sale |
38/43/50/60/75 Kg Heavy Steel Rail
The steel rail, also know as rail track, railroad rail, is used to guide the train wheels far forwarding, by withstanding the enormous stress by the wheel when a train passes by, and transferring to the tie sleepers as well. The rail shall provide smooth and continuous rolling surface with least resistance.
Generally speaking, the heavier the rails and the rest of the track work, the heavier and higher speed for the train these railroad tracks can carry. At electrified railway or automatic block sections, the railroad rail can also be used as the railroad track circuit
Our main steel rails are: 6-30KG light rails; 38KG heavy rails-60KG heavy rails, QU70-120 crane rails, 9-12# mine steel 25-36 ( U-type steel) bracing steel; mines and railway spare parts, and every specification of round steel, H-beam, I-beam and so on.
38/43/50/60/75Kg Heavy Steel Rail Parameter
|
Parameters of 38kg Heavy Rail |
|||
|
type |
weight (kg/m) |
material |
length (m) |
|
38kg |
38.733 |
50Mn/U71Mn |
12/12.5m |
|
rail height (mm) |
bottom width (mm) |
head width (mm) |
web thinkness (mm) |
|
134 |
114 |
68 |
13 |
|
Heavy Steel Rail |
Size |
Rail Height |
Bottom Width |
Head Width |
Web Thickness |
Weightkg/m |
|
38kg |
134 |
114 |
68 |
13 |
38.733 |
|
|
43kg |
140 |
114 |
70 |
14.5 |
44.653 |
|
|
50kg |
152 |
132 |
70 |
15.5 |
51.514 |
|
|
60kg |
176 |
150 |
73 |
16.5 |
60.8 |
|
|
75kg |
192 |
150 |
75 |
20 |
74.64 |

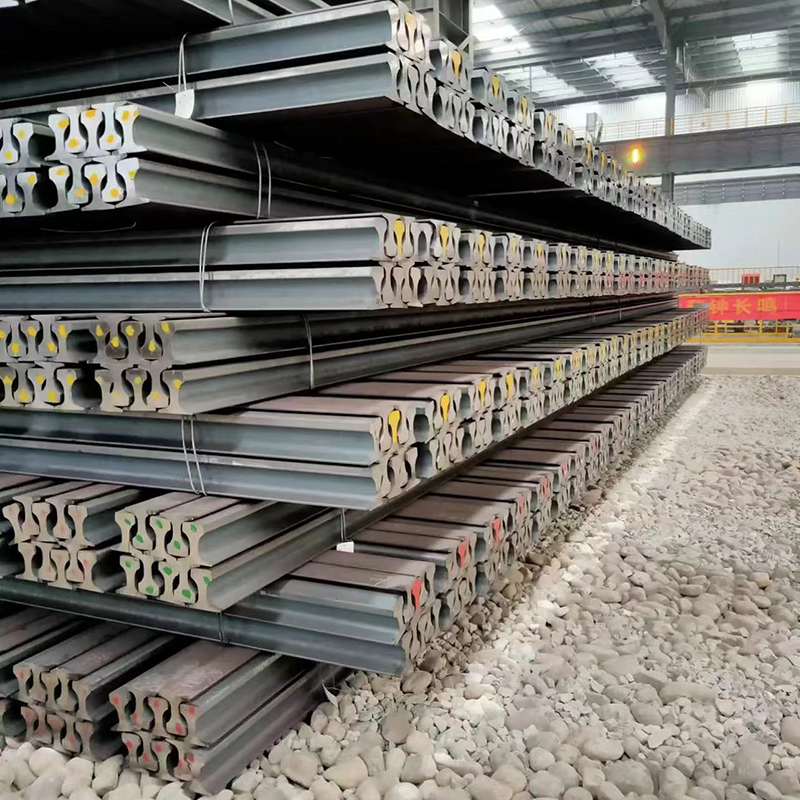

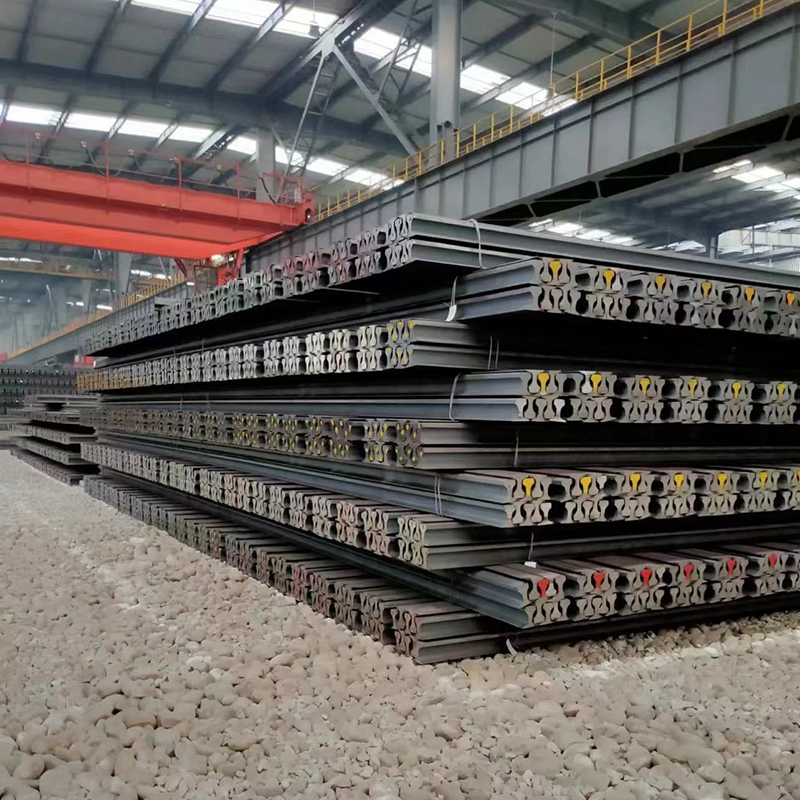

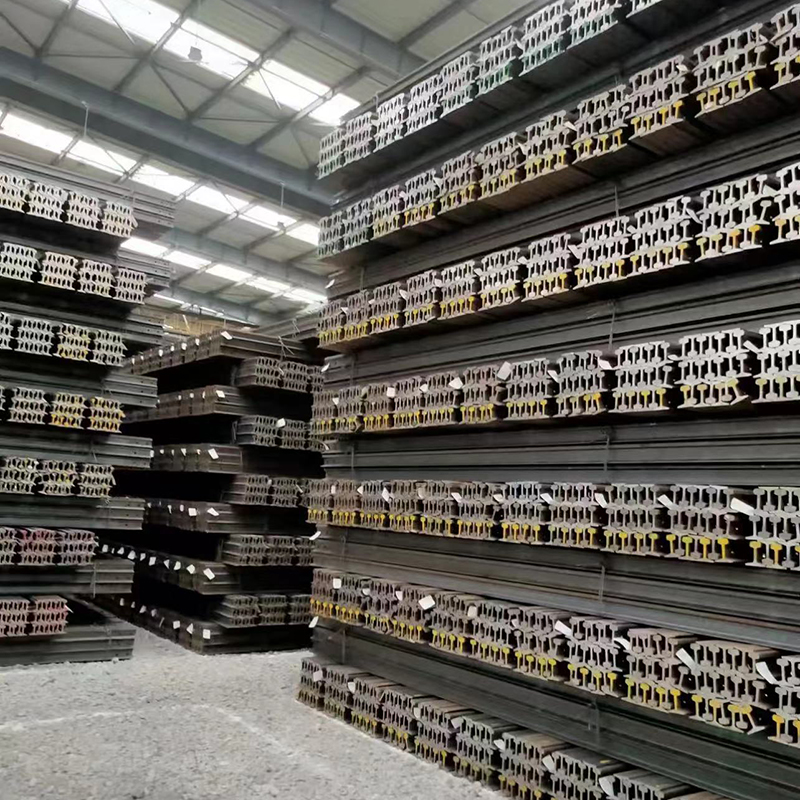

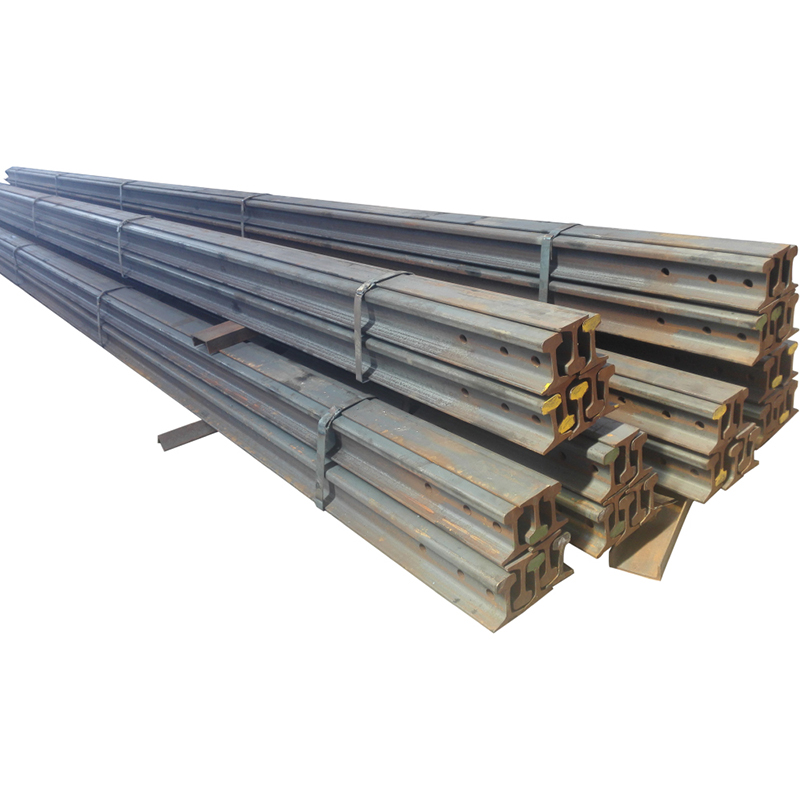

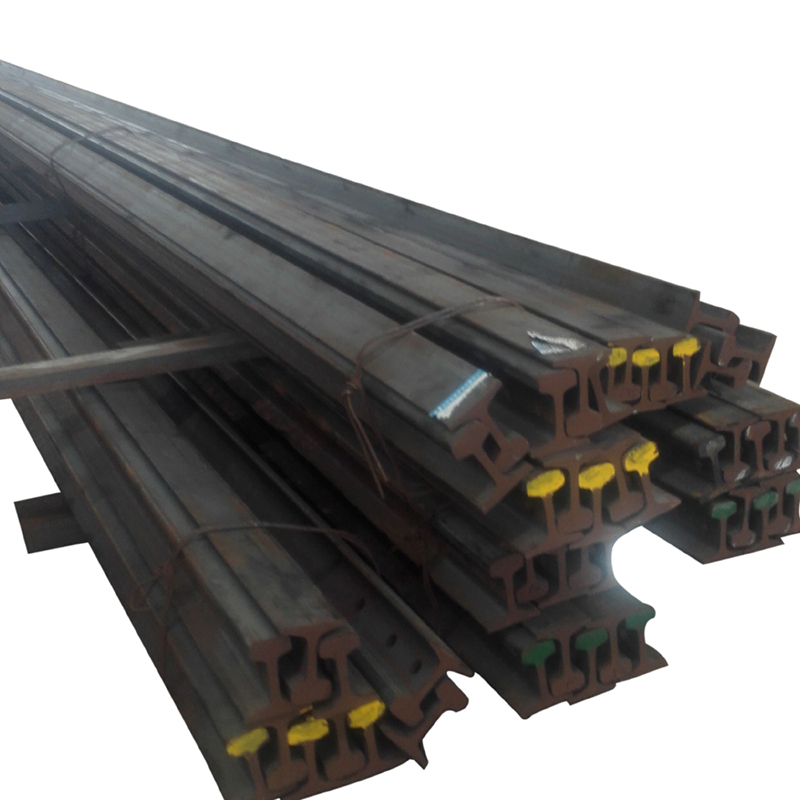

38/43/50/60/75Kg Heavy Steel Rail Images
Contact us for a quote！
