YT27 Pneumatic Rock Drill With Air Leg
YT27 Pneumatic Rock Drill With Air Leg
YT27 is a kind of high efficiency air leg rock drill machine,widely used for blasting holes and other drilling works in a quarries
- Release Date:March 15 , 2023
- Category: Mining Drill Equipment
- Tags: rock drill | pneumatic rock drill | YT27 rock drill |
YT27 Pneumatic Rock Drill With Air Leg
T27 is a kind of high efficiency air leg rock drill machine.
It is widely used for blasting holes and other drilling works in a quarries, railway construction, water conservancy construction and national defence project facility.
When it is matched with Model FY250 Oil reservoir and Model FT160A or FT160B Air-leg , it is suitable for wet drilling under various of rocks at aclinic and incline orientation,it can also use in the trolley without Air-leg.
YT27 Pneumatic Rock Drill With Air Leg Parameter
|
YT27 Technical Specifications |
|
|
Type |
YT27 |
|
Weight |
27 (Kg) |
|
External Dimensions (L W H) |
668*248*202 (mm) |
|
Cylinder Diameter |
φ80 (mm) |
|
Piston Stroke |
60 (mm) |
|
Working Water Pressure |
0.3 (Mpa) |
|
Impact Energy |
^75.5 (J) |
|
Working Temperature |
-30 ~ 50 ℃ |
|
Drilling Hole Diameter |
φ34~φ45 (mm) |
|
Drilling Hole Depth |
5 (m) |
|
Air Pipe Inner Diameter |
φ25 (mm) |
|
Water Pipe Inner Diameter |
φ13 (mm) |
|
Working Pressure |
0.63MPa |
|
Impact Frequency |
36.7Hz |
|
Noise |
≤127Db/(A) ≤126Db/(A) ≤125Db/(A) |
|
Drilling Speed |
≥480mm/min ≥400mm/min ≥300mm/min |
|
Shank Size |
22×108 (mm) |

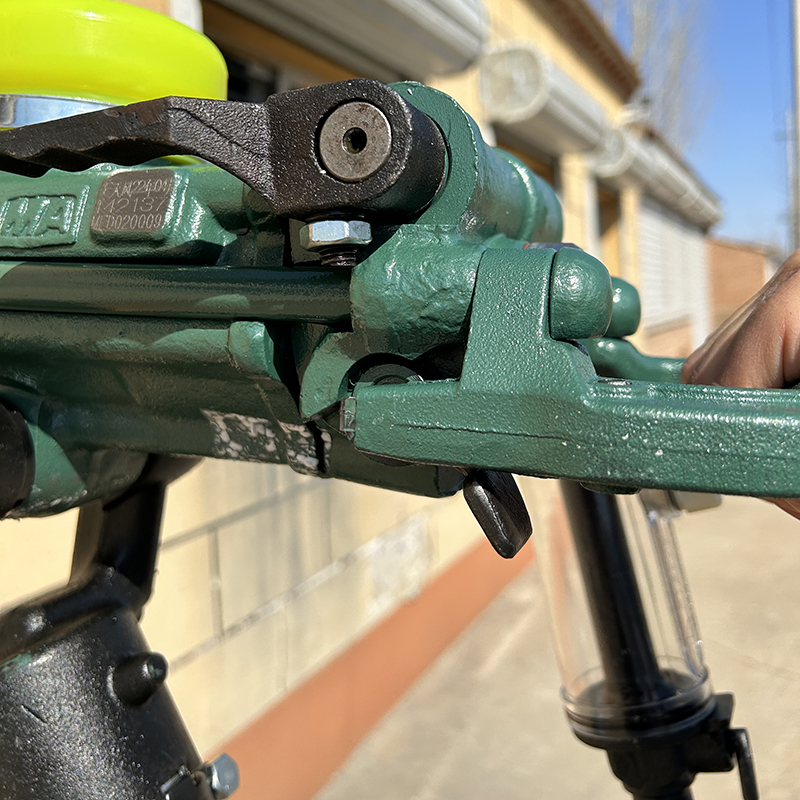

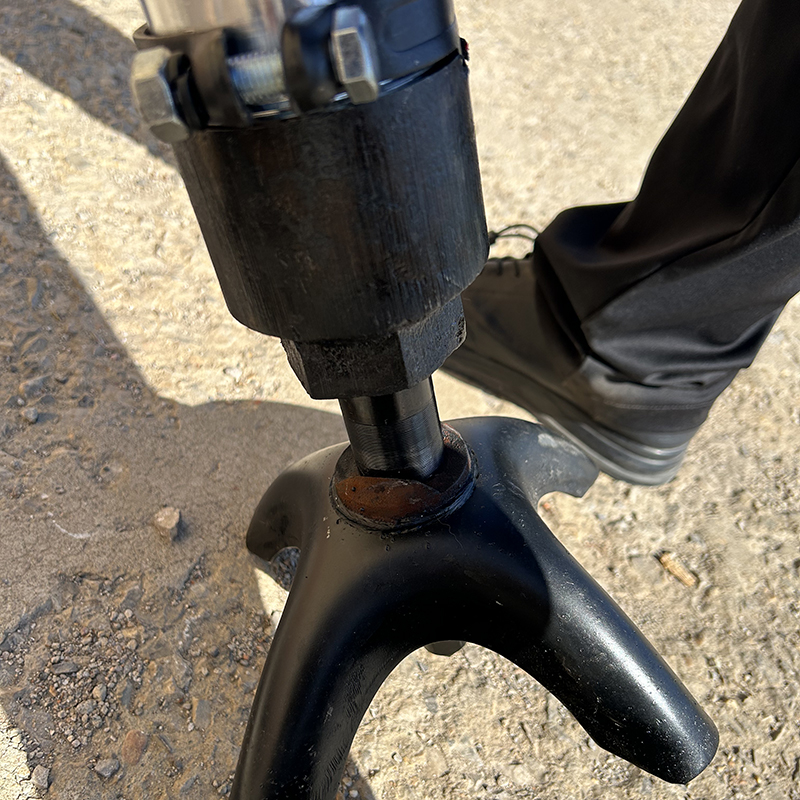

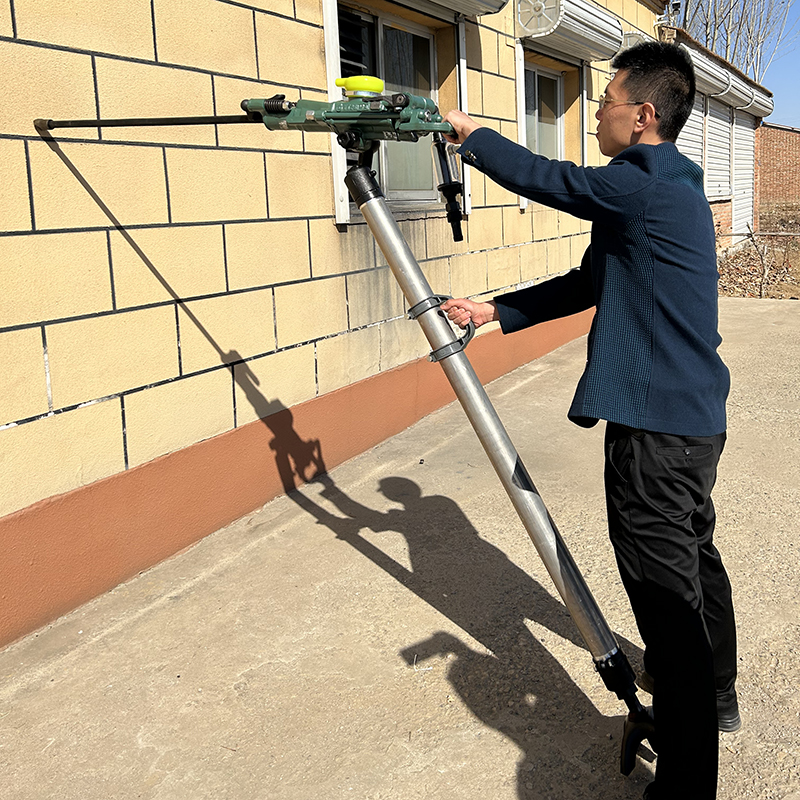

YT27 Pneumatic Rock Drill With Air Leg Images
