YT24 Pneumatic Rock Drill With Air Leg
YT24 Pneumatic Rock Drill With Air Leg
YT24 air powered rock drill mainly used in construction sites, various types of mines, railways, water conservancy construction and national defense construction areas for drilling operations.
- Release Date:March 15 , 2023
- Category: Mining Drill Equipment
- Tags: pneumatic rock hammer | air powered rock drill | rock drill price |
YT24 Pneumatic Rock Drill With Air Leg
YT24 Air-leg Rock Drill, an important tool for rock drilling operations in mines, railway, communication and water conservancy projects, etc., is most suitable for making horizontal and inclined blast holes in medium-hard and hard rocks with a hardness of f8~18.
May be used together with FT140B or FT140BD Air-leg and FY200B Line Oiler with transparent casing. The tool can also be mounted on a rig or a wagon.
YT24 Pneumatic Rock Drill With Air Leg Parameter
Air Pressure: 0.63
MpaAir Consumption: ≤67 L/s
Impact Frequency: ≥31
HzAir Hose Size: 19 mm
Water Hose Size: 13 mm
Bore Diameter: Φ34～Φ42 mm
Drilling Depth: 5 m
Shank Size (Hex.*L): 22*108±1 mm

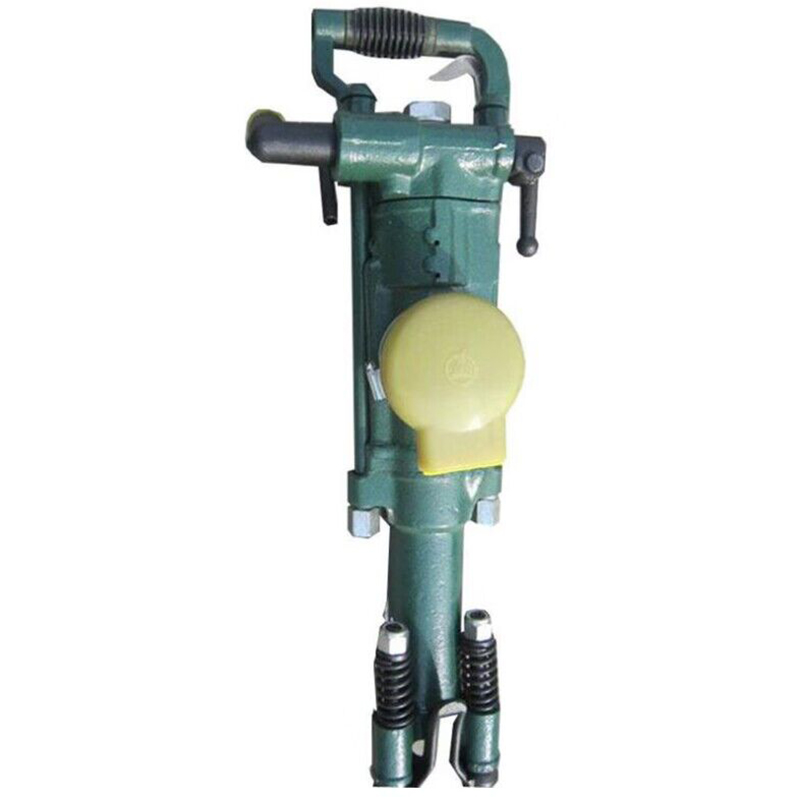

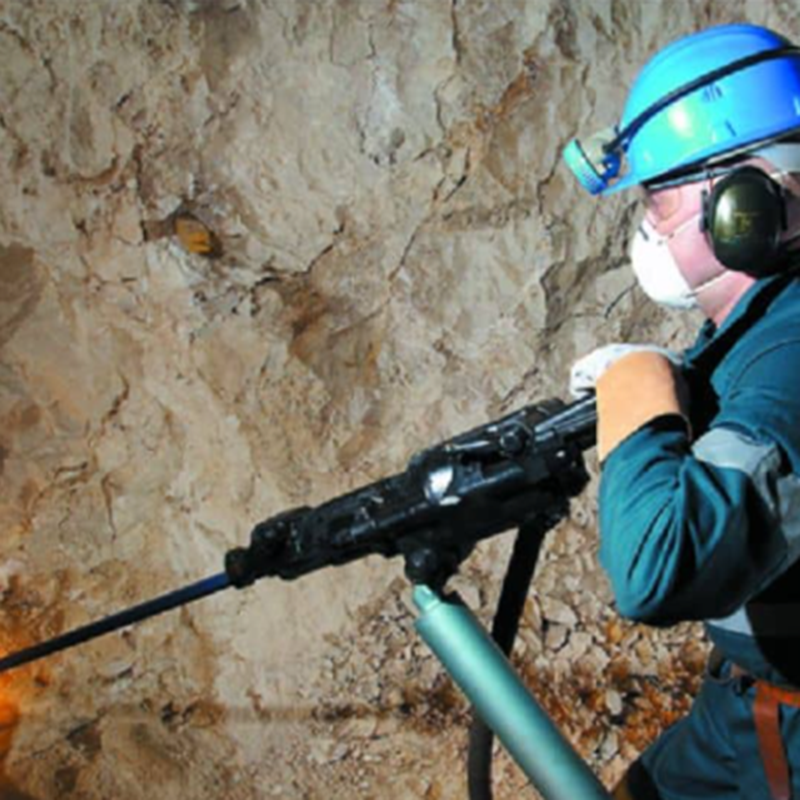

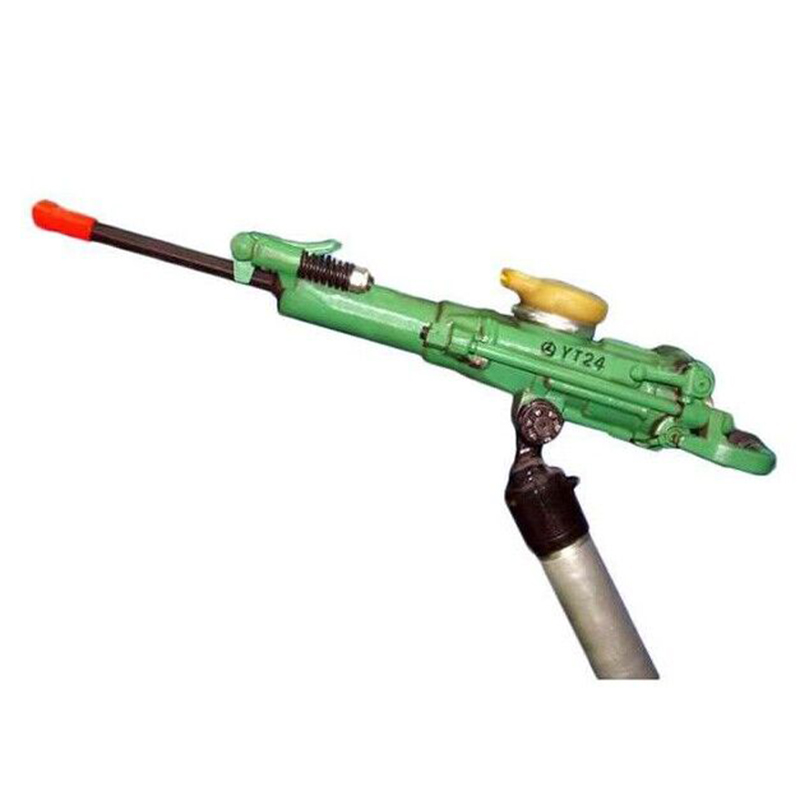

YT24 Pneumatic Rock Drill With Air Leg Images
