Y26 Pneumatic Hand Held Rock Drill
Y26 Pneumatic Hand Held Rock Drill
Hand held rock drill model Y26 is mainly used for drilling, secondary blasting and other work in mines, railway and water conservancy projects
- Release Date:March 15 , 2023
- Category: Mining Drill Equipment
- Tags: hammer rock breaker | rock jack hammer | small rock drill |
Y26 Pneumatic Hand Held Rock Drill
Hand held rock drill model Y26 is mainly used for drilling, secondary blasting and other work in mines, railway and water conservancy projects. It is designed for both dry and wet rock drilling on hard and medium hard rock, vertically downwards or inclined blast hole. For wet drilling, the water pipe nut must be replaced with the airpipe nut and the water pipe.
Y26 Pneumatic Hand Held Rock Drill Parameter
Pneumatic rock drill Y26
Weight
26
kg
Dimension (L x W x H)
650 x 534 x125
mm
Cylinder diameter
65
mm
Piston stroke
70
mm
Working pressure
4-5
Bar（e）
lmpact energy (at 5.0 bar (el)
≥48
J
Impact energy (at 4.0 bar (el)
≥30
J
Air consumption (at 5.0 bar (el))
≤50
L/s
Air consumption (at 4.0 bar (el))
≤47
L/s
lmpact frequency (at 5.0 bar (e))
≥27
Hz
Impact frequency (at 4.0 bar (e))
≥23
Hz
Torque (at 5.0 bar (el))
≥14
Nm
Torque (at 4.0 bar (e))
≥11
Nm
Noise level
≤125
dB(A)
Water pressure
working pressure -1
Bar(e)
Air hose inner diameter
19
mm
Water hose inner diameter
13
mm
Drilling diameter
34-42
mm
Max drilling depth
5
m
Working temperature
-30 to +50
°C
Shank size
H22x108+1/H25x108
mm

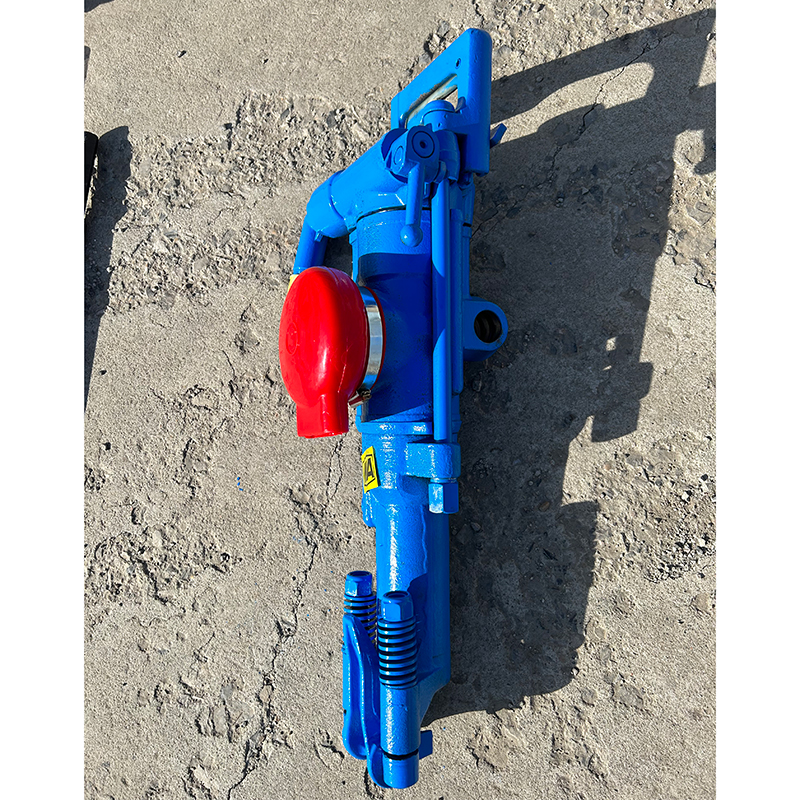

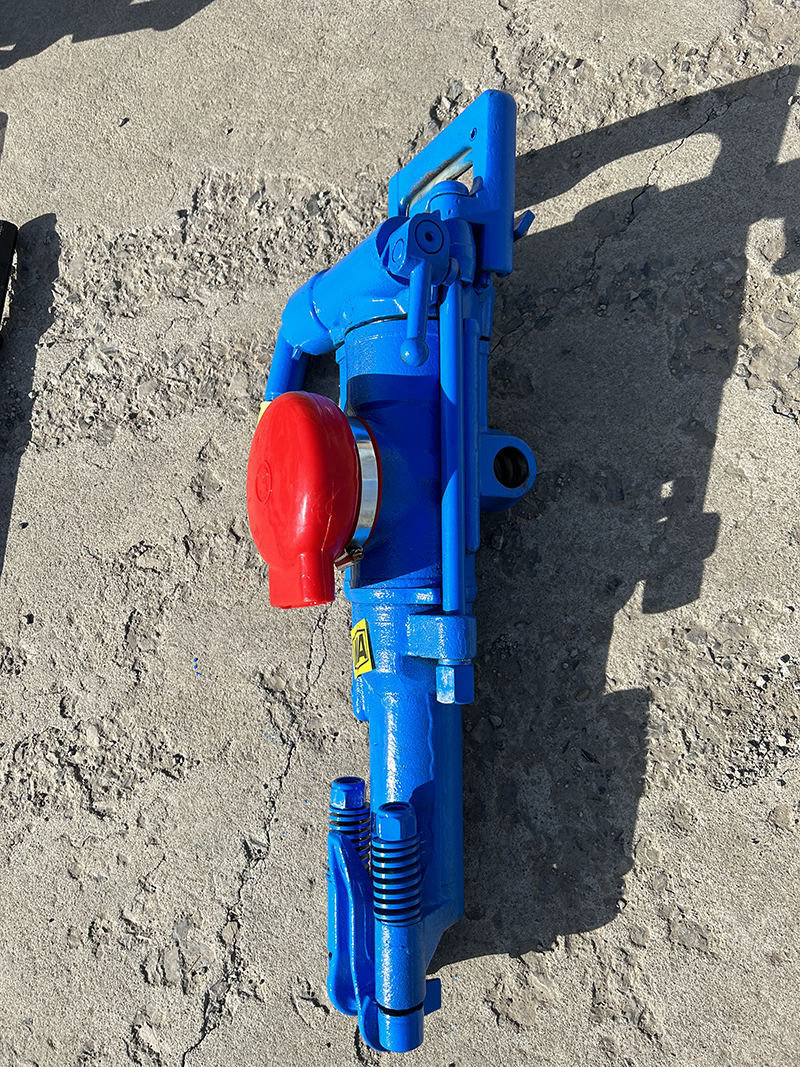

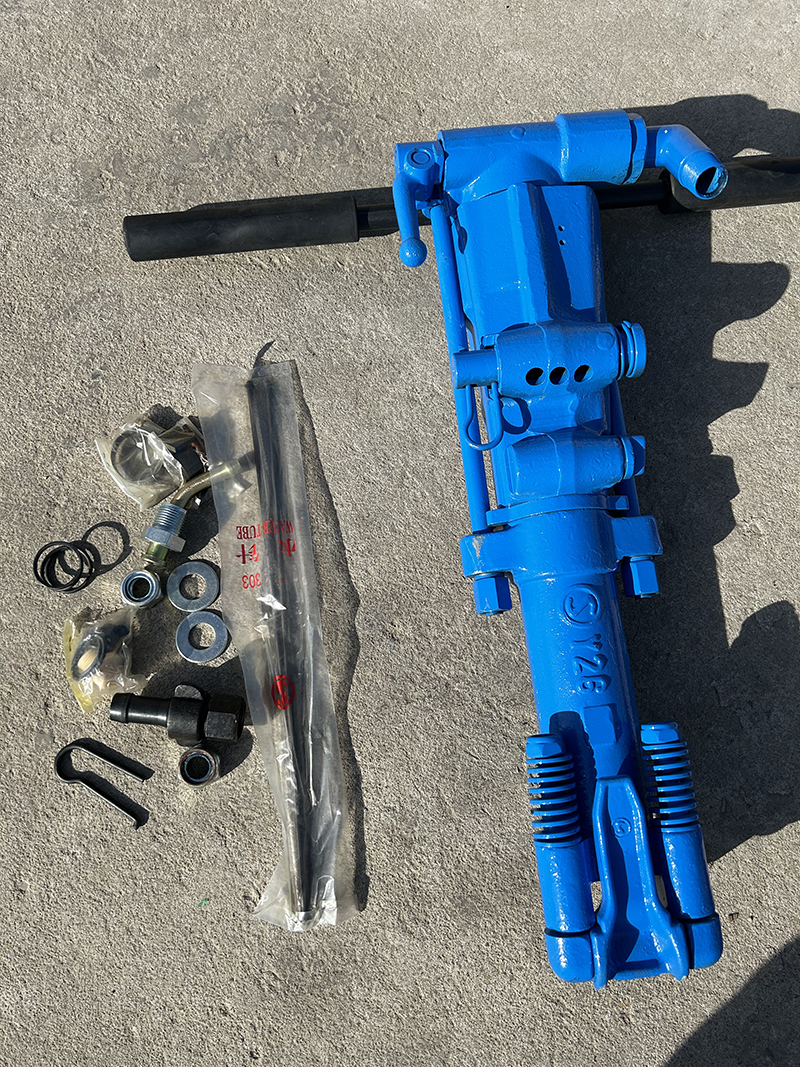

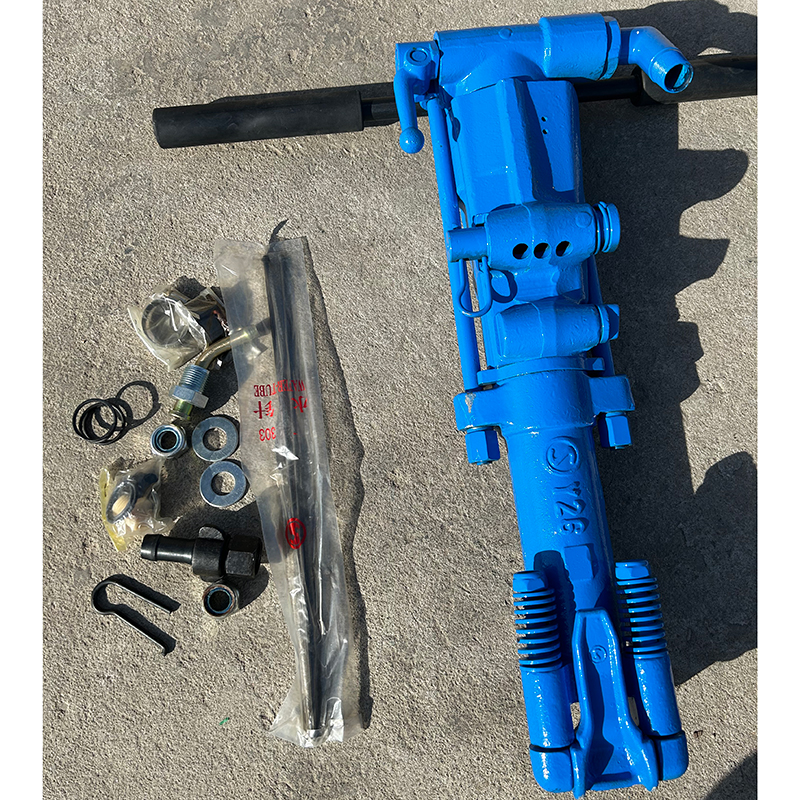

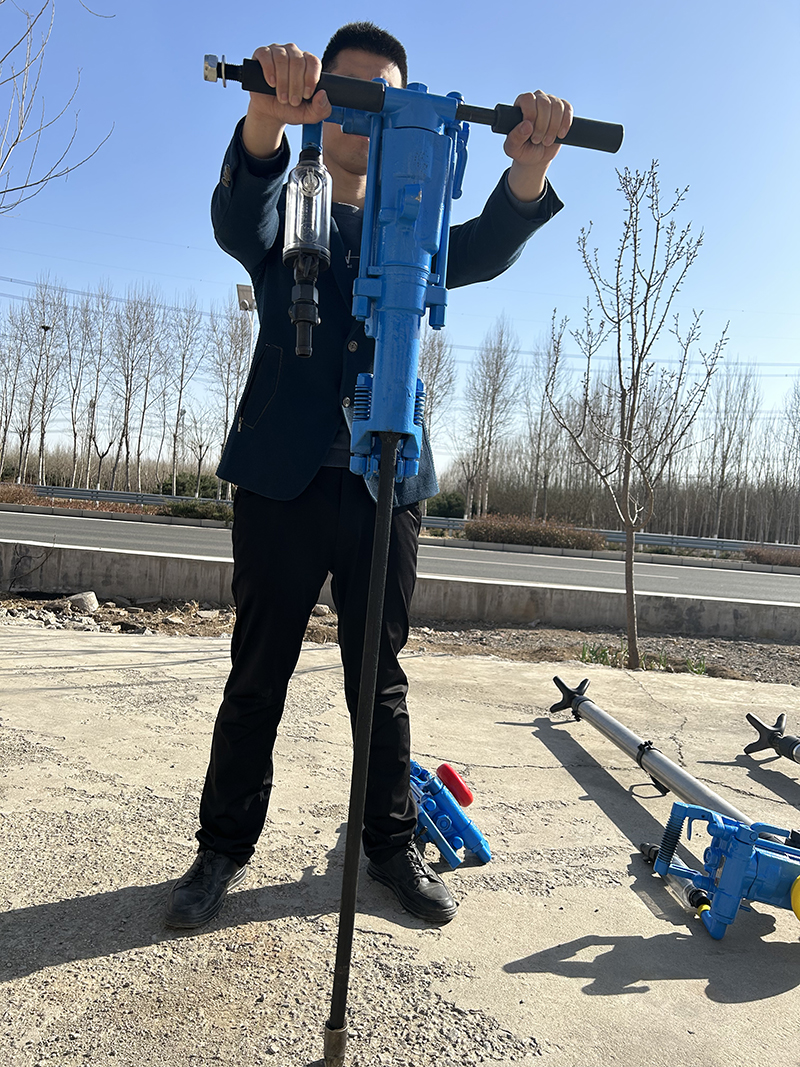

Y26 Pneumatic Hand Held Rock Drill Images
