YN27C Gasoline Hand Held Rock Drill
YN27C Gasoline Hand Held Rock Drill
YN27C gasoline rock drills or petrol driven rock drill machine is powered by gasoline engine, without using air compressor, a very efficient machine
- Release Date:March 17 , 2023
- Category: Mining Drill Equipment
- Tags: gasoline rock drill | yn27c gasoline rock drill | hand held rock drills for sale |
YN27C Gasoline Hand Held Rock Drill
YN27C gasoline rock drills or petrol driven rock drill machine is powered by gasoline engine, without using air compressor, a very efficient machine with the characters that the structure is very compact, less of the-easy-to-damage-parts, and very easy to control. It can adapt to these outside situations there is no water and no electronic power. It is a kind hand held drill built up with gasoline engine, air pump, rock drill and the rotation plum bum equipment for running or stop. It can be used as a tool for breaking, percussive drilling, tamping besides rock.
YN27C Gasoline Hand Held Rock Drill Parameter
YN27C Gasoline Rock Drill Specification
Rock Drill Type
YN27C
Weight(kg)
27
Overall Dimension(L*W*H)mm
746*315*229
Drilling Diameter(mm)
32-42
Drilling Depth(mm)
Max.6m
Diameter of Engine Piston(mm)
58
Stroke Of Engine Piston(mm)
70
Rotating speed of Engine(R/min)
>2450
Rotating speed of Drilling Rod(R/min)
>250
Oil Consumption(L/m)
<0.12
Tank Capacity(Liter)
1.65
Max Drilling Depth(m)
6
Shank Size(mm)
Hex 22*108
Ignition System
Controllable silicon,Contactless system

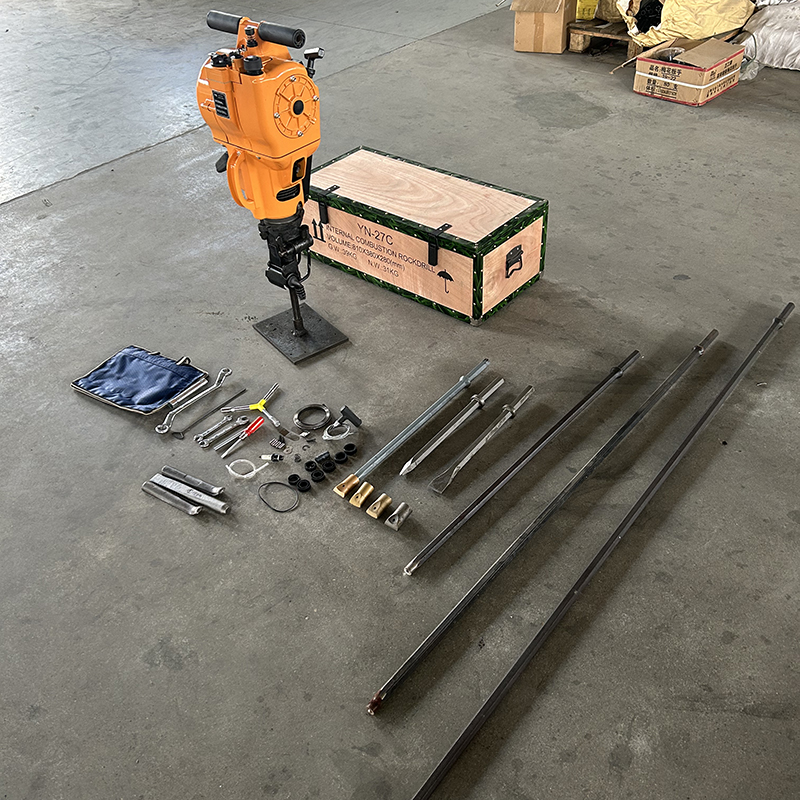

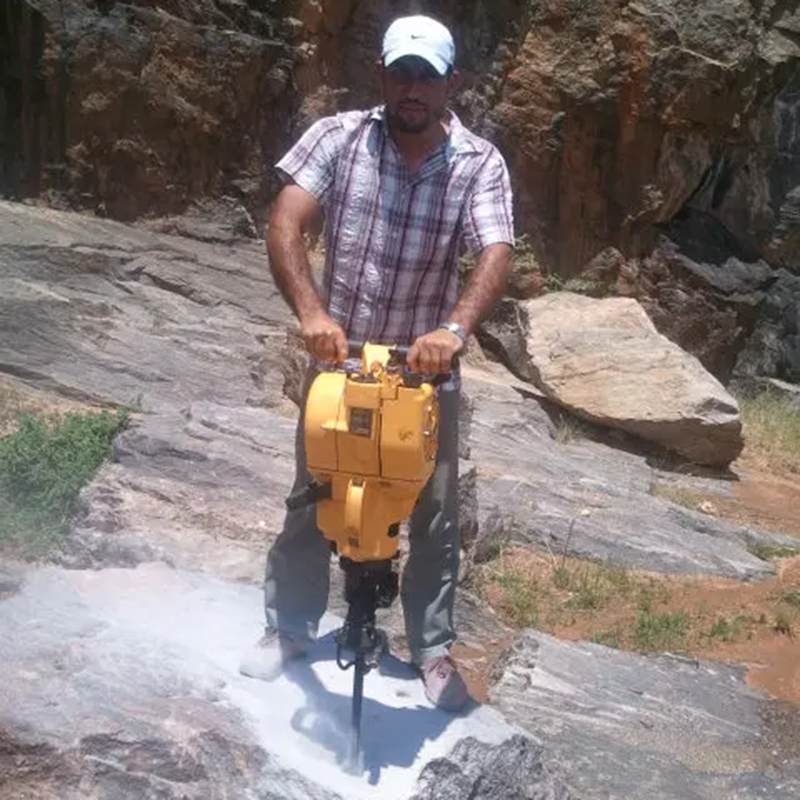

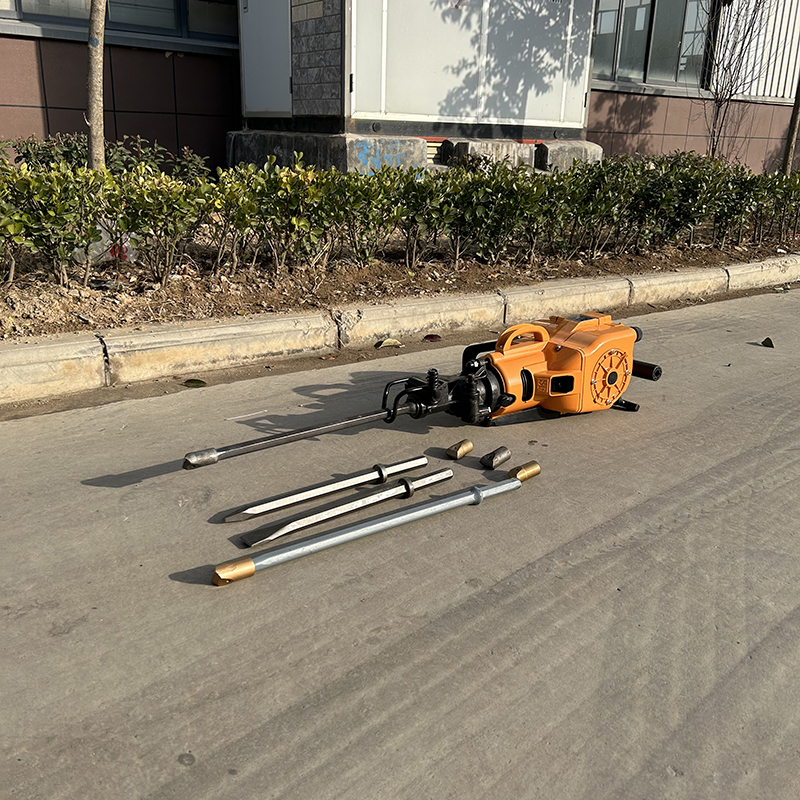

YN27C Gasoline Hand Held Rock Drill Images
Contact us for a quote！
