Multipurpose QCZ-1 Pneumatic Percussion Drill is portable smart small pneumatic tools, with shock, impact and pure clockwise rotation.zmwm02

QCZ-1 Pneumatic Hand Held Rock Hammer

Multipurpose QCZ-1 Pneumatic Percussion Drill is portable smart small pneumatic tools, with shock, impact and pure clockwise rotation.zmwm02
Pneumatic explosion-proof no spark, safety performance is good wait for a characteristic. Mainly used in rock, brick, concrete components are installed on the pipeline, set up power lines, such as installation of anchor bolt, chemical plants, refineries, construction, heavy industry, is in danger of wet gas tunnel, underwater and narrow space. Especially in mine gas explosion, pneumatic explosion-proof no spark that can reflect the more security.
QCZ-1 Pneumatic Hand Held Rock Hammer Parameter

Model
QCZ-1
Supply pressure
0.5~0.7 Mpa
Matched drill specifications
φ8φ10φ12 φ14 φ16 φ18 φ20 φ22 φ24mm
Punching depth
300mm
Impact energy
≥2.5 J
Impact frequency
≥48 Hz
No load speed
200 r/min
Air consumption
≤12L/s
Cylinder diameter
34 mm
Piston stroke
32 mm
Impact Frequency:
48Hz
No Load Speed:
200r/min
Dimensions
366mm×185mm×76mm
weight
4.5 kg

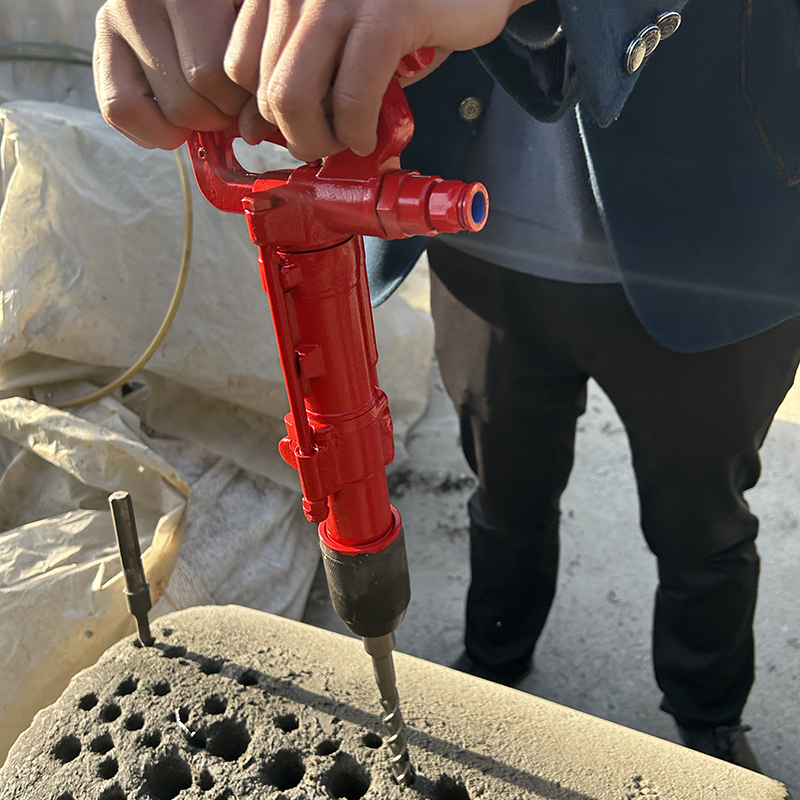

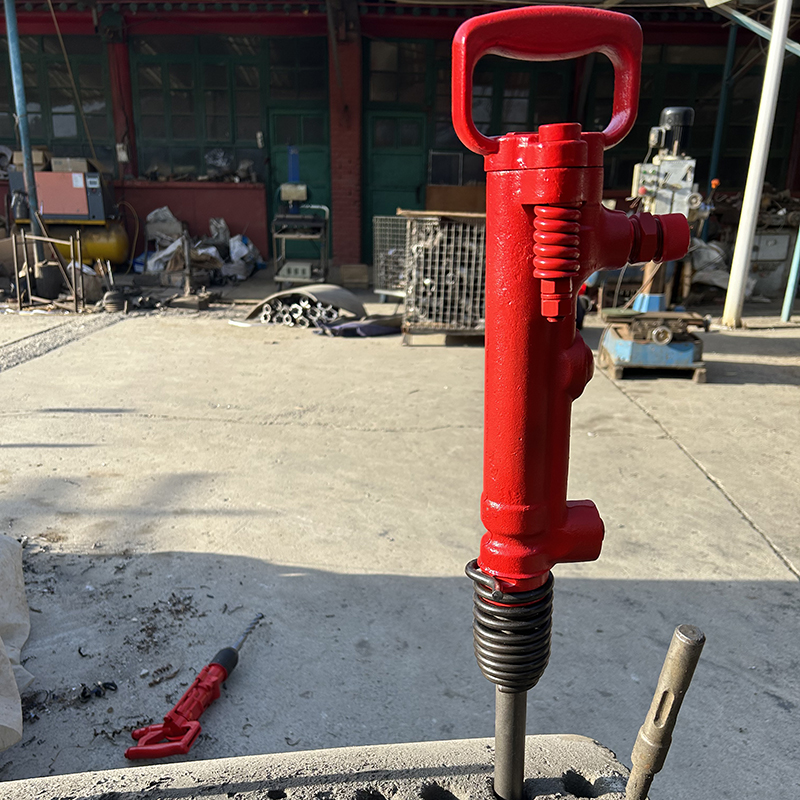

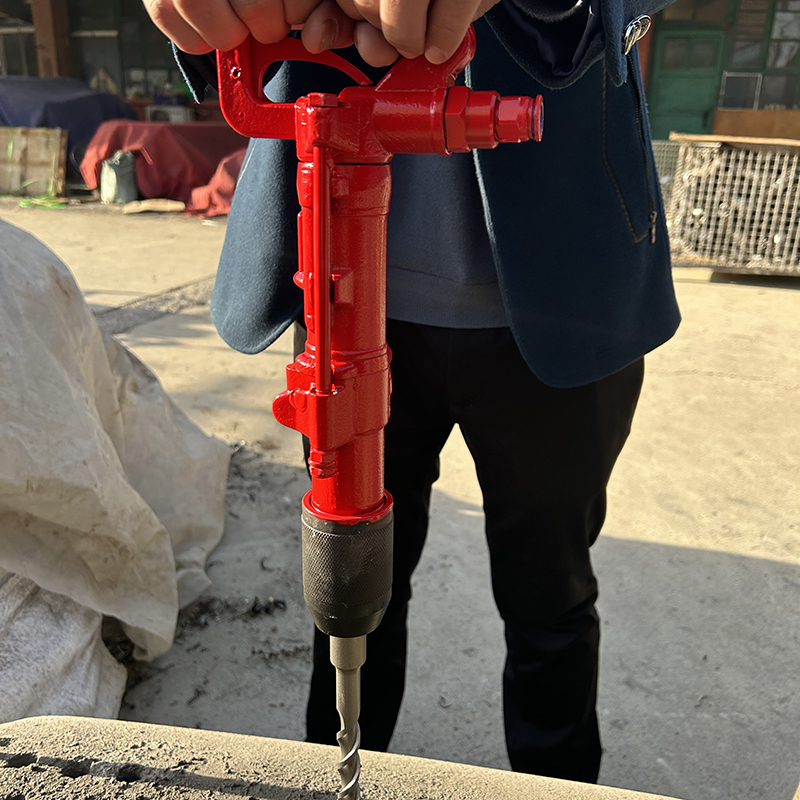

QCZ-1 Pneumatic Hand Held Rock Hammer Images
