QCZ-2 Pneumatic Hand Held Rock Hammer
QCZ-2 Pneumatic Hand Held Rock Hammer
Multipurpose QCZ-2 Pneumatic rock hammer is portable smart small pneumatic tools, with shock, impact and pure clockwise rotation
- Release Date:March 17 , 2023
- Category: Mining Drill Equipment
- Tags: breaker hammer | rock breaker hammer | rock pick hammer |
QCZ-2 Pneumatic Hand Held Rock Hammer
Multipurpose QCZ-2 Pneumatic rock hammer is portable smart small pneumatic tools, with shock, impact and pure clockwise rotation
QCZ-2 Pneumatic Hand Held Rock Hammer Parameter
QCZ-2 Pneumatic Hand Held Rock Hammer
Dimension(LxWxH)
400x 185x86m
Machine weight
6.5kg
Cylinder diameter
39mm
Piston stroke
38mm
Pneumatic tube inner diameter
10mm
When the gas seizure is 0.4Mpa
Impact energy
≥3.5joules
Impact frequency
≥68Hz
Air consumption
≤12L/sec
Specification of impact drill
φ6φ8φ10φ12φ14φ16 φ18 φ20 φ22φ25 φ28 φ30
Maximum drilling depth
300m

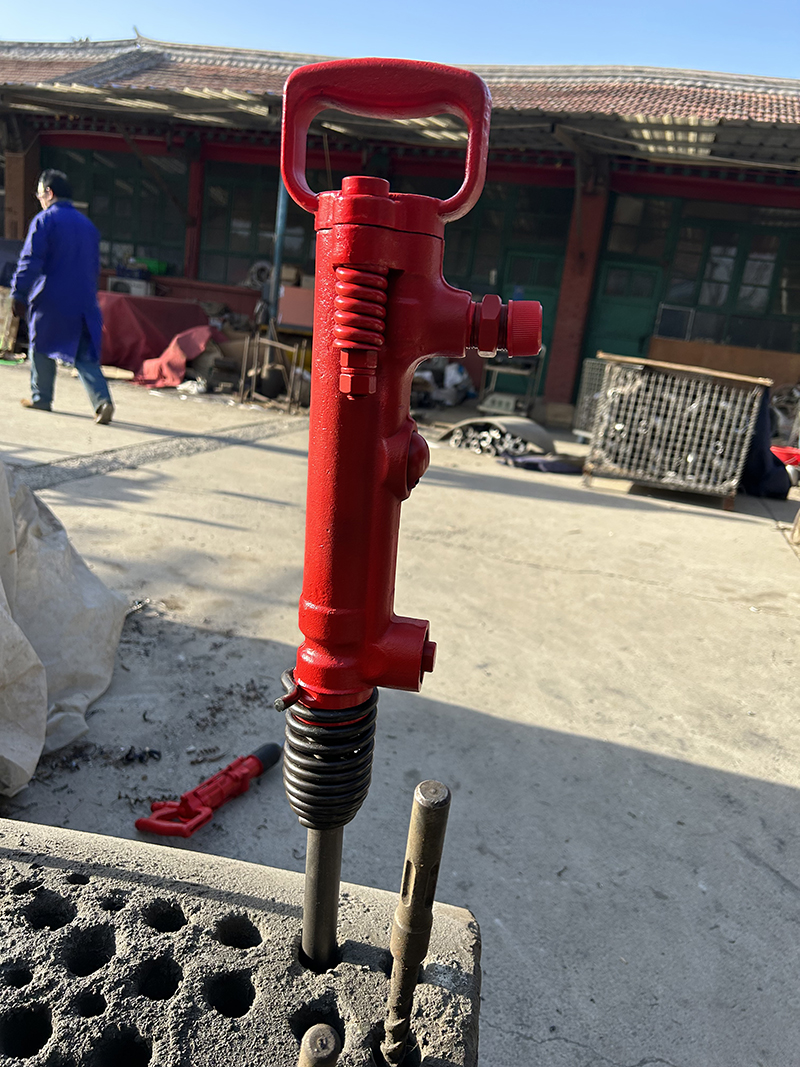

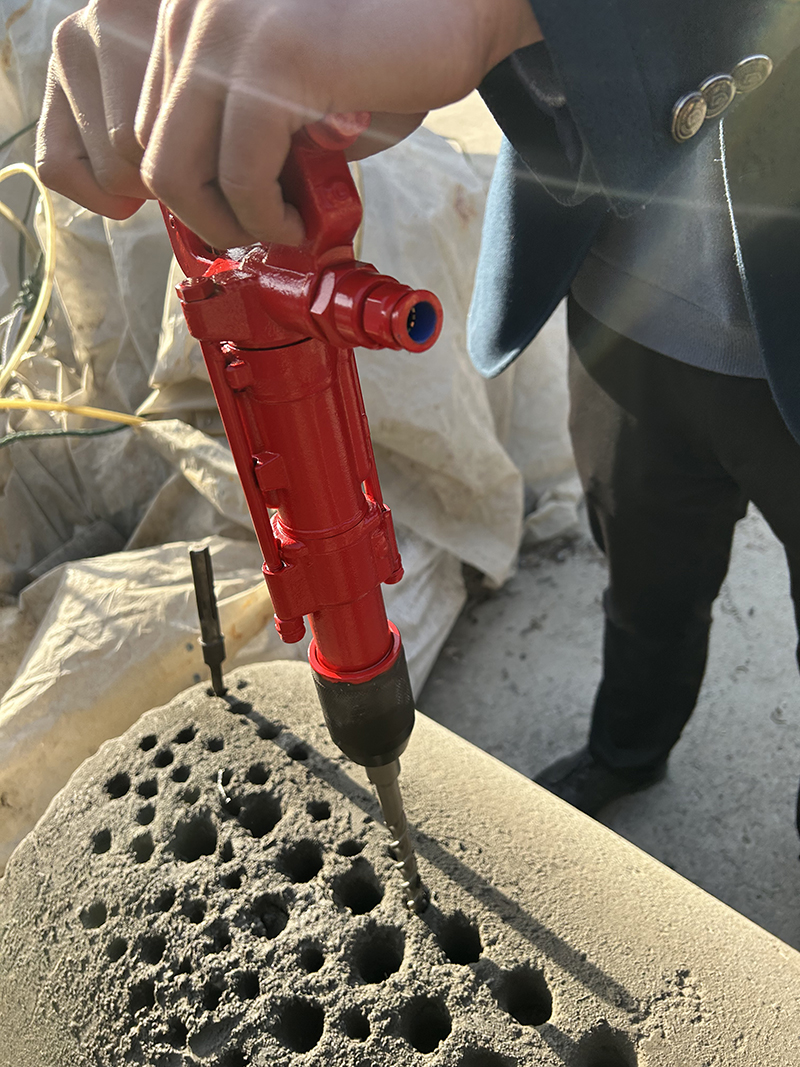

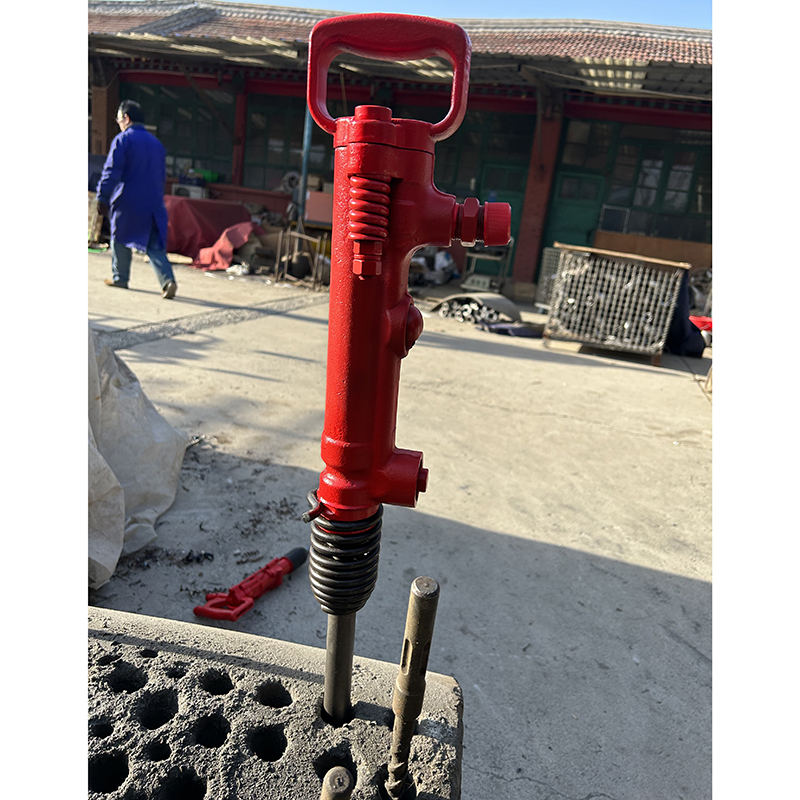

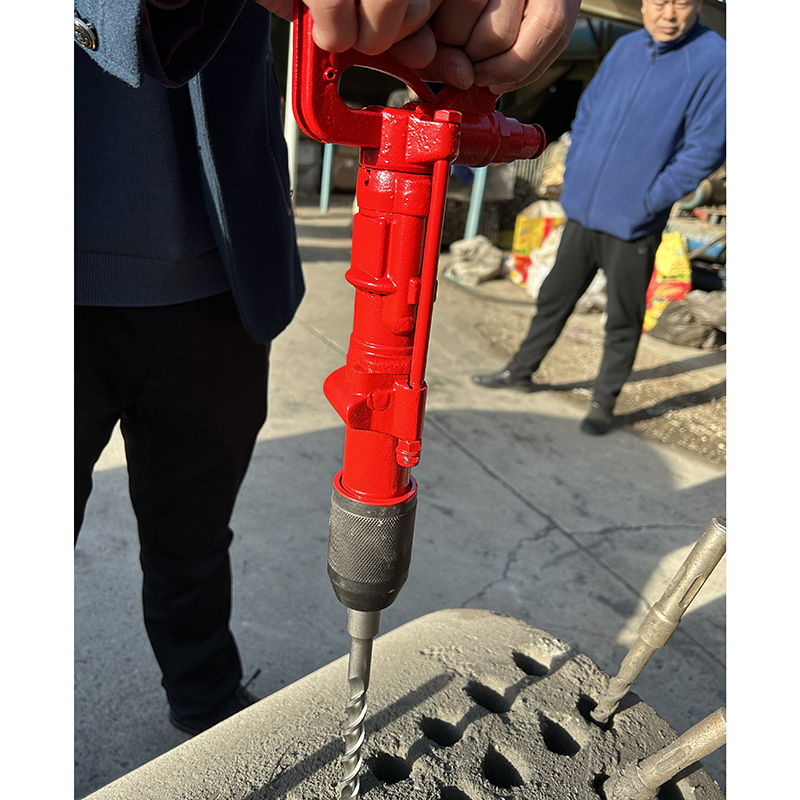

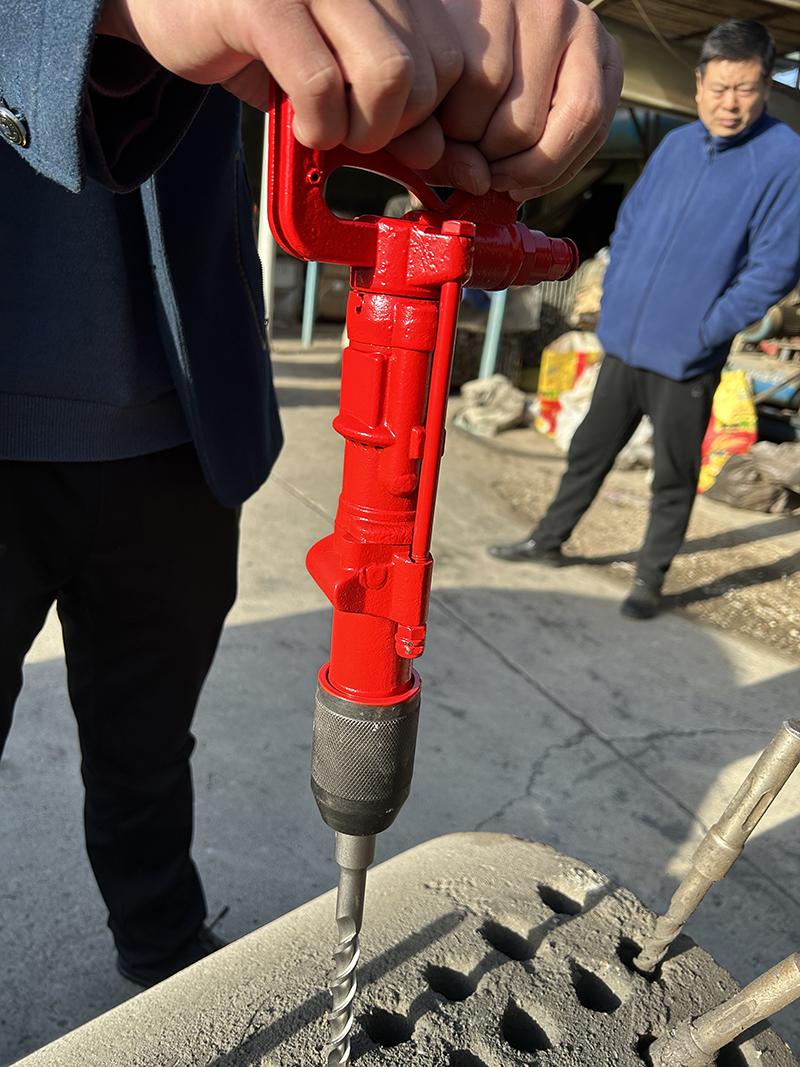

QCZ-2 Pneumatic Hand Held Rock Hammer Images
Contact us for a quote！
