The Handheld Backpack Portable Core Drill is a nearly ideal tool for environmental and geotechnical field investigation because it can be used in otherwise difficult of access locations

sales@mingkomach.com +86 5373151560 Please Leave a Message What can I do for you

Handheld Backpack Portable Core Drill

The Handheld Backpack Portable Core Drill is a nearly ideal tool for environmental and geotechnical field investigation because it can be used in otherwise difficult of access locations.

Handheld MK-B30 Backpack Portable Core Drill Parameter

Handheld MK-B30 Backpack Portable Core Drill
Model
MK-B30
Drill Diameter (mm)
φ40-φ108
Drill Depth (m)
30
Application of Rock Types
Soil/Medium Hard (10 Grade)
Water Consumption (L/H)
14.4
Power（cc）
173
Rod rotation speed（r/min）
0-800
Drill Pipe Diameter (mm)
φ32
Drill Pipe Length (mm)
720 (Including Connector)
Drill Pipe Material
Titanium Alloys
Drill Pipe Weight (kg)
1.1
Gasoline Engine Power(hp)
7.5
Rated Rotation Speed (rpm)
2200
Weight (kg)
23

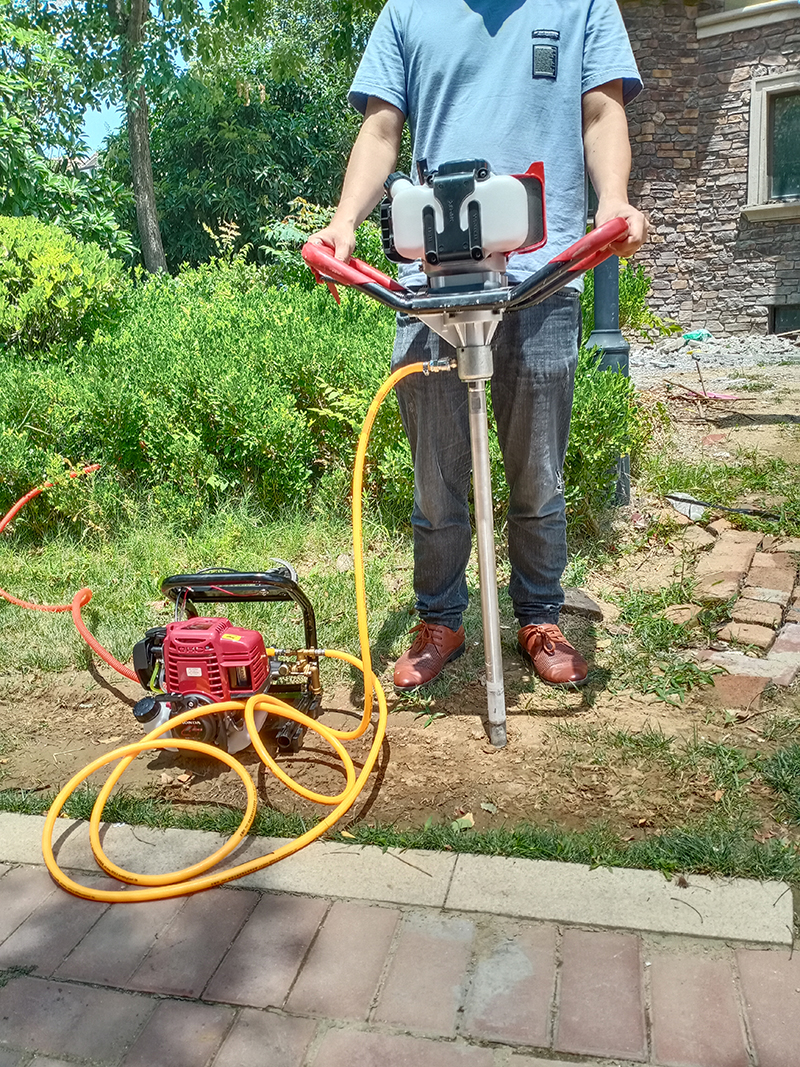

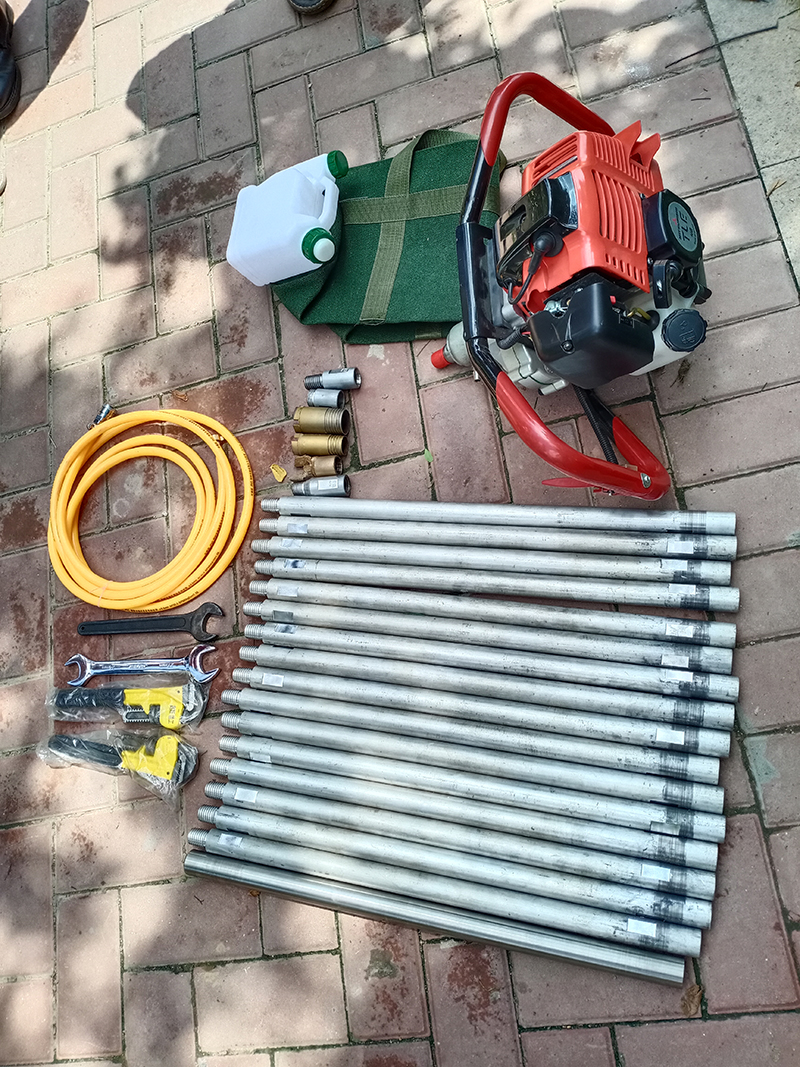

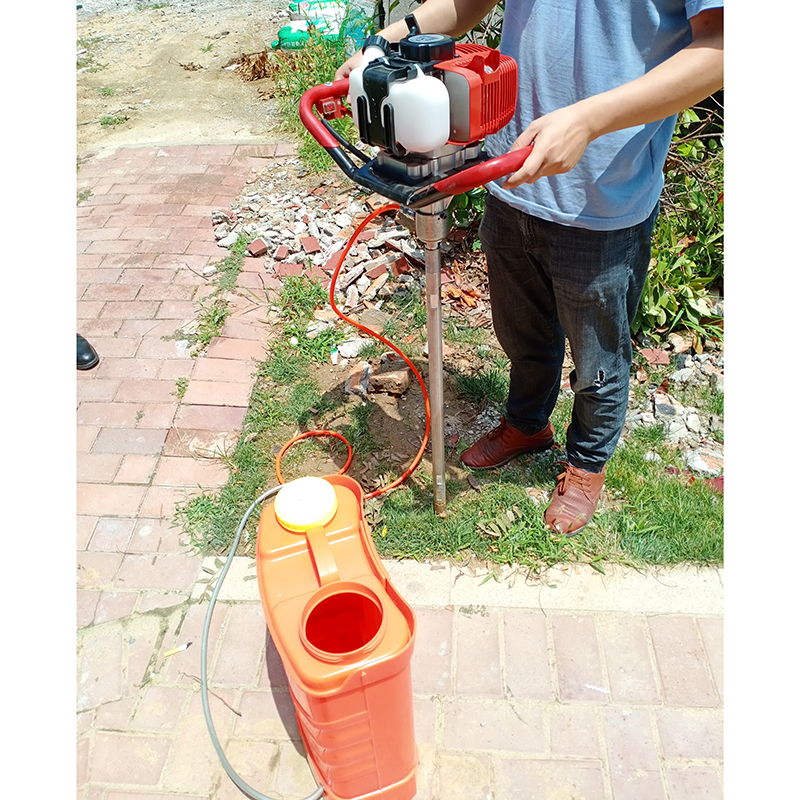

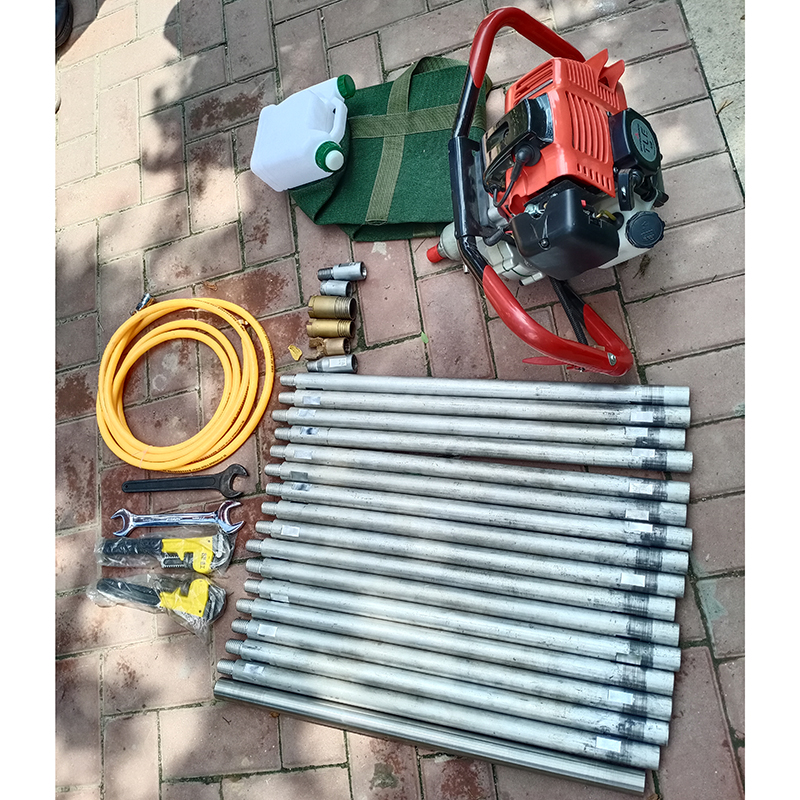

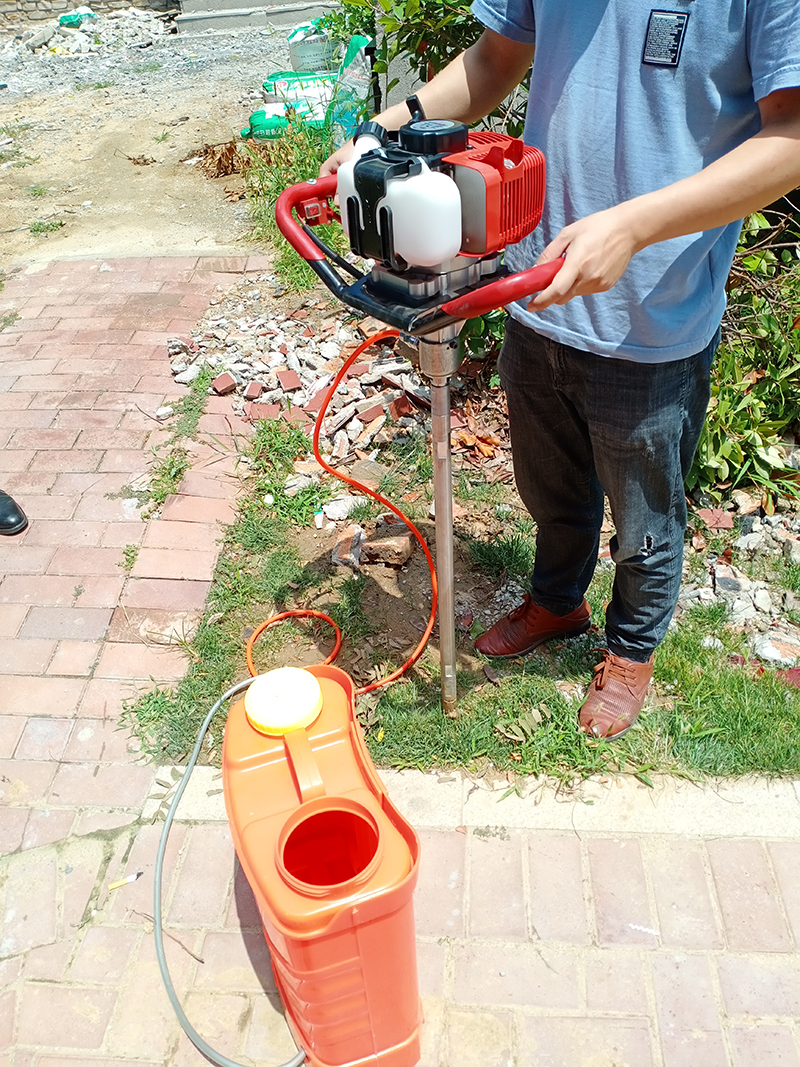

Handheld MK-B30 Backpack Portable Core Drill Images
