MK-CZ Fiberglass Chop Spray Machine
MK-CZ Fiberglass Chop Spray Machine
MK-CZ fiberglass chop equipment is designed with a catalyst delivery process that provides better ratio control and improves the quality of your end products
- Release Date:April 07 , 2023
- Category: Spray Machine Equipment
- Tags: spray fiberglass | fiberglass spray gun | fiberglass spray equipment |
MK-CZ Fiberglass Chop Spray Machine
Mingko fiberglass chop equipment is designed with a catalyst delivery process that provides better ratio control and improves the quality of your end products while minimizing material waste.
Fiberglass spray machine Mingko-CZ
Compression ratio: 19:1 the ratio of air engine and the pump for feeding
Piston stoke :110mm
Air cylinder diameter:160mm
Standard Nozzle: 1.4 mm
2.5L-6L/min spray resin .
Operating Pressure: 45 to 65 PSI (3.0 to 4.5 bar)
Pattern Width: (200 to 500 mm)
Air Consumption: Above 23cfm .
Heavy Duty Pressure Feed Paint Tank Specifications:
Clamp on Lid with Gasket
Fluid pressure regulator with gauge
Hose Assembly: 15 meters Hoses,and Fluid Hoses
(3 meters resin feeding hose)
Air inlet: 16mm Fluid feeding inlet:19mm
Air Pressure Relief Valve for Safety

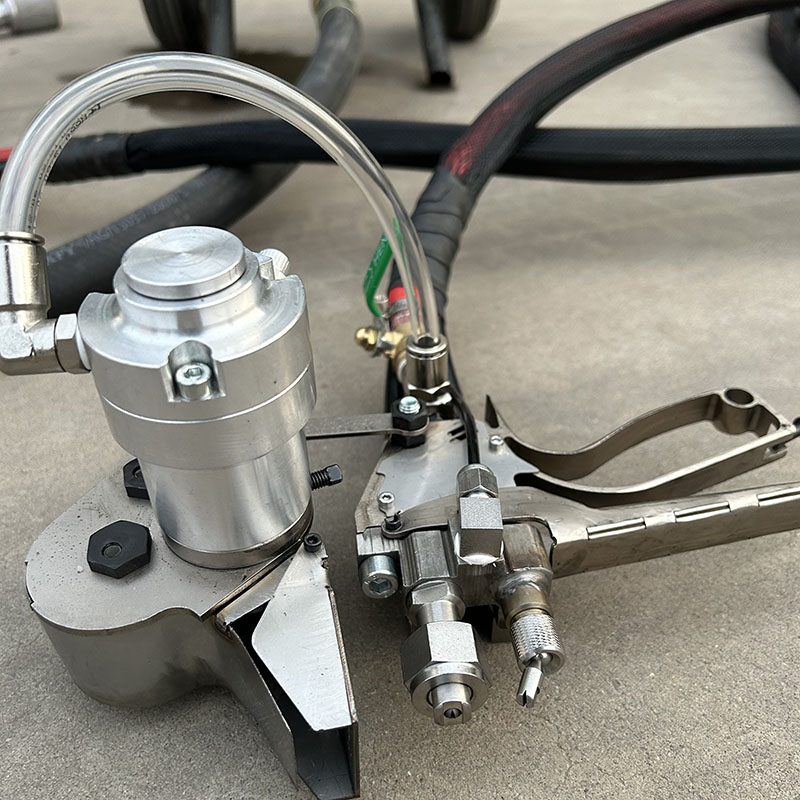

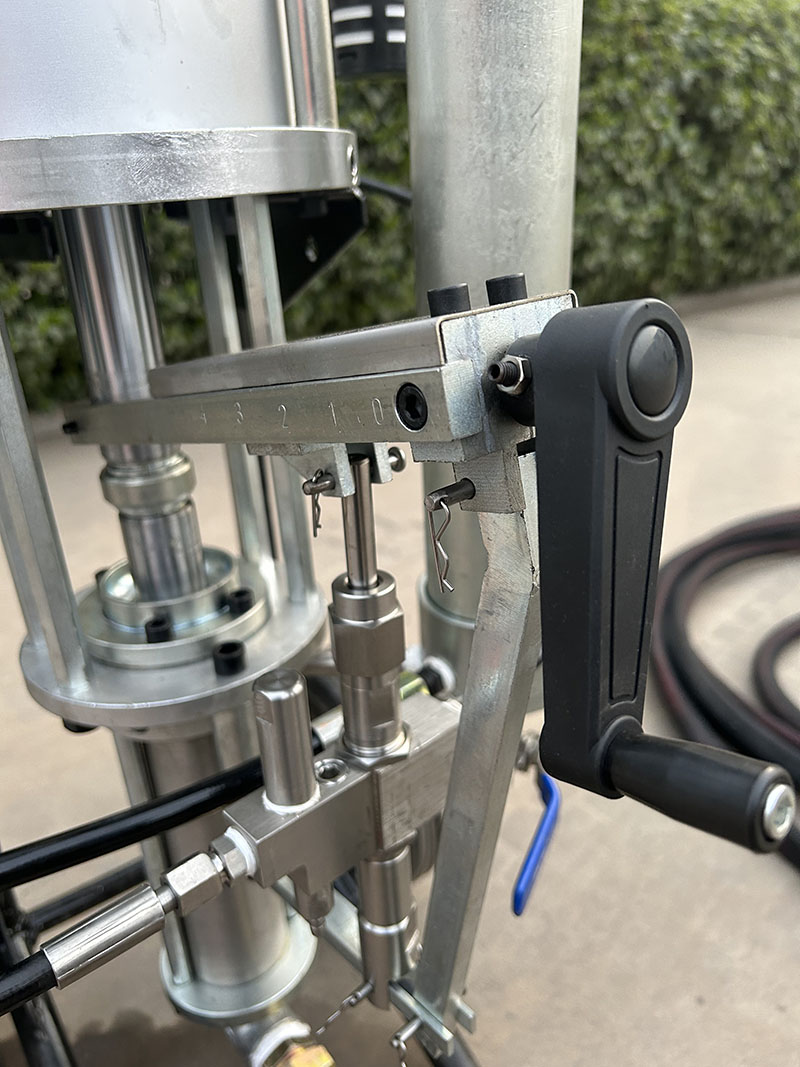

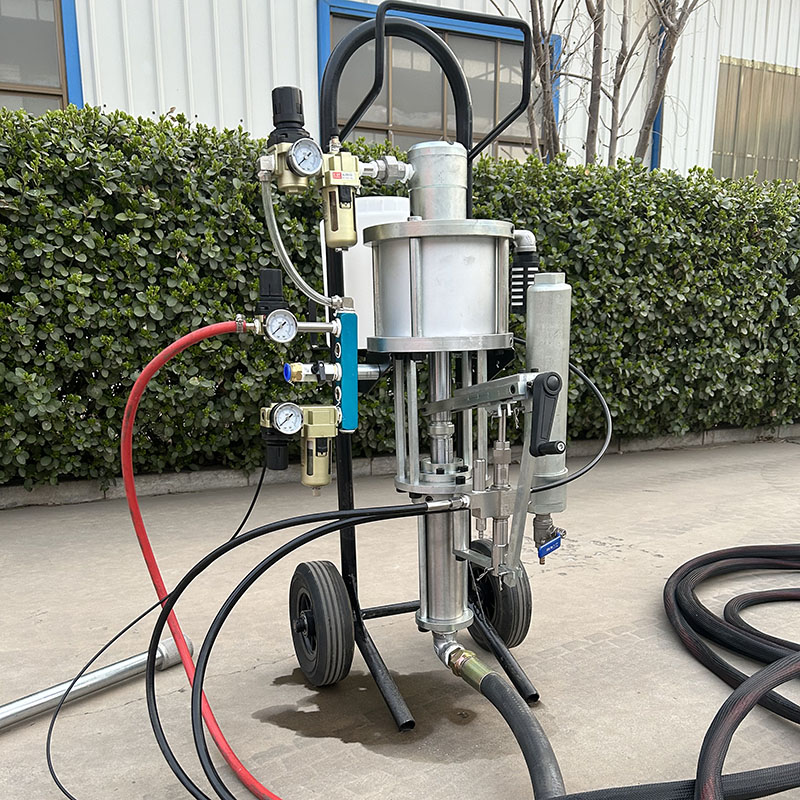

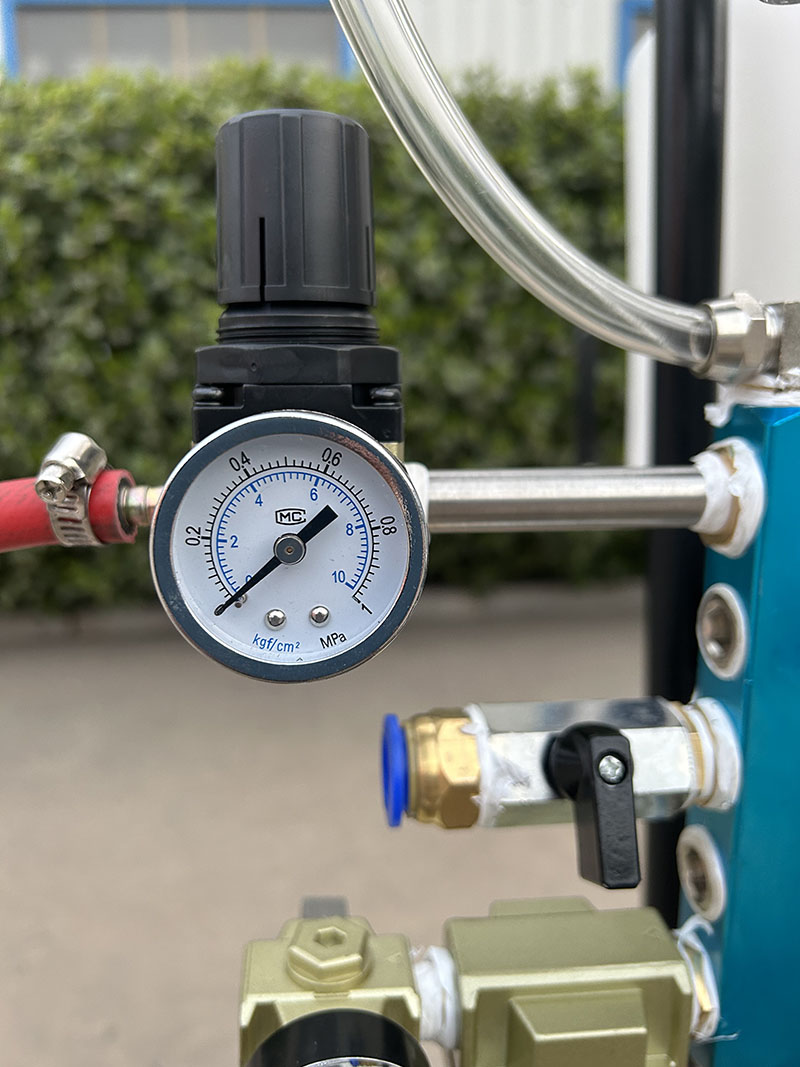

MK-CZ Fiberglass Chop Spray Machine Images
