MK-ZJ Fiberglass Chop Spray Machine

The FRP (Fiber-Reinforced Plastic) Chopper System can be used to apply chopped fiberglass on your open mold applications. It offers precise on-ratio dispensing with easy transition from wet-out to chop dispense applications.

Easy to Setup and Use
Mingko Fiberglass chop equipment is easy to assemble so you are up and running quickly. There is less hose tangling as a result of better guides so production time is increased. With a simple user interface, adjustments are made easier with a simple control panel so system operators can maximize cure rates and ensure optimal results. Easy ratio changes require no tools to adjust the catalyst pump ratio.

Fiberglass spray machine Mingko-ZJ
Compression ratio: 19:1 the ratio of air engine and the pump for feeding
Piston stoke :110mm
Air cylinder diameter:160mm
Standard Nozzle: 1.4 mm
 2.5L-6L/min spray resin .
Operating Pressure: 45 to 65 PSI (3.0 to 4.5 bar)
Pattern Width:  (200 to 500 mm)
Air Consumption: Above 23cfm .
Heavy Duty Pressure Feed Paint Tank Specifications:
Clamp on Lid with Gasket
Fluid pressure regulator with gauge
 Hose Assembly: 15 meters Hoses,and Fluid Hoses
（3 meters resin feeding hose）
Air inlet: 16mm Fluid feeding inlet:19mm
 Air Pressure Relief Valve for Safety

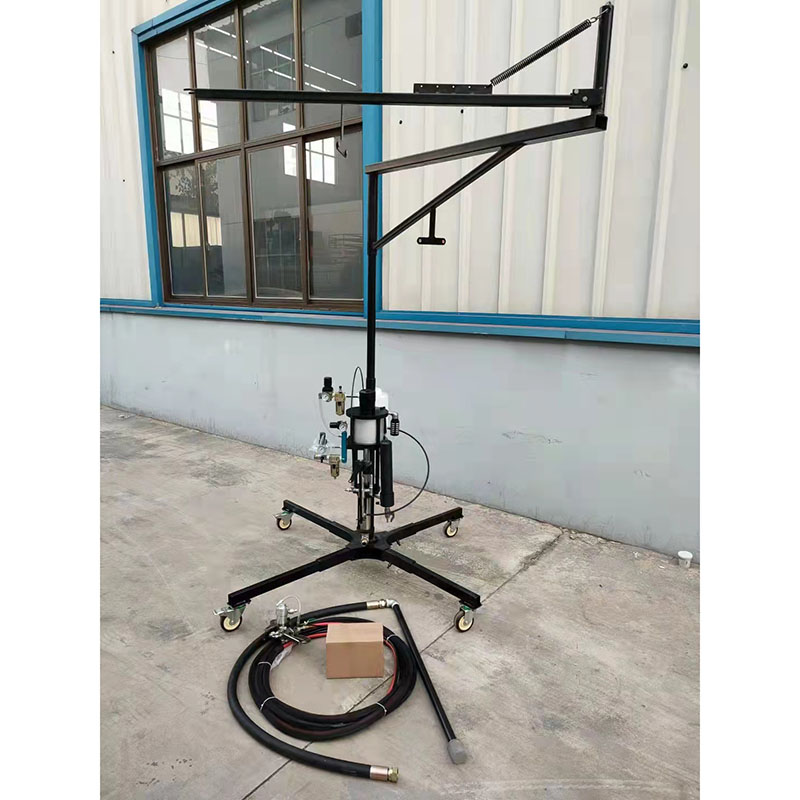

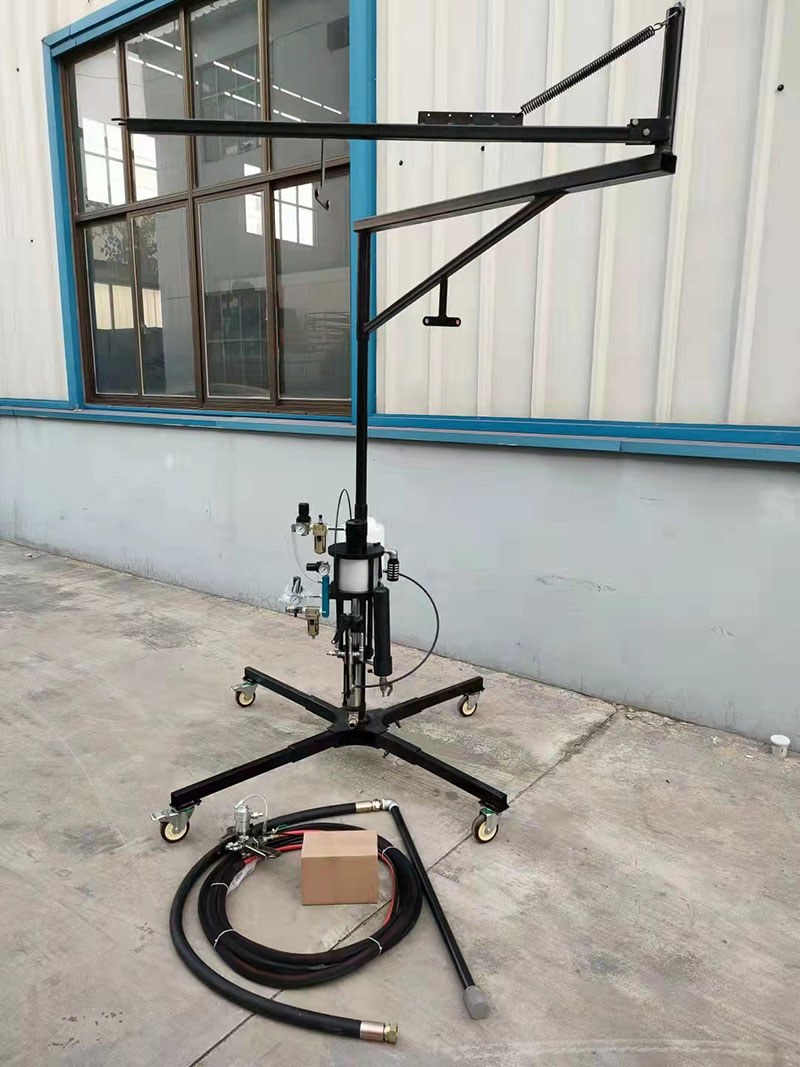

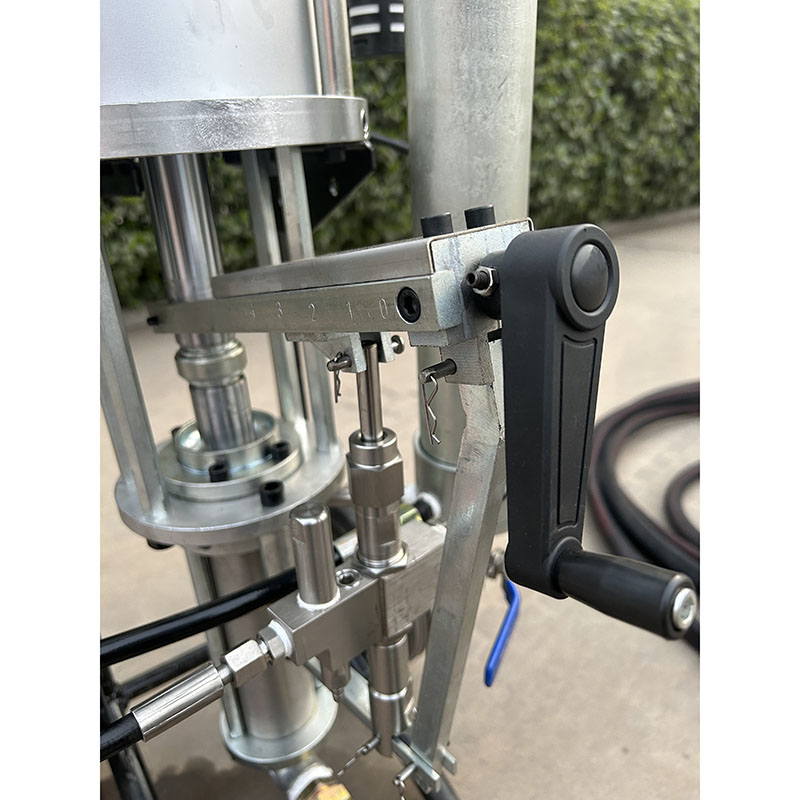

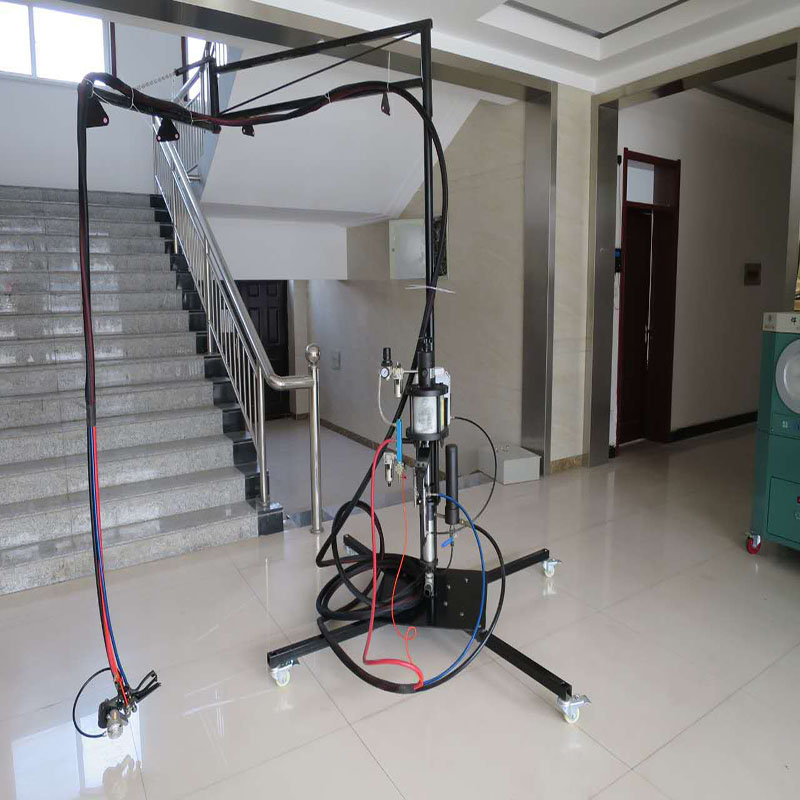

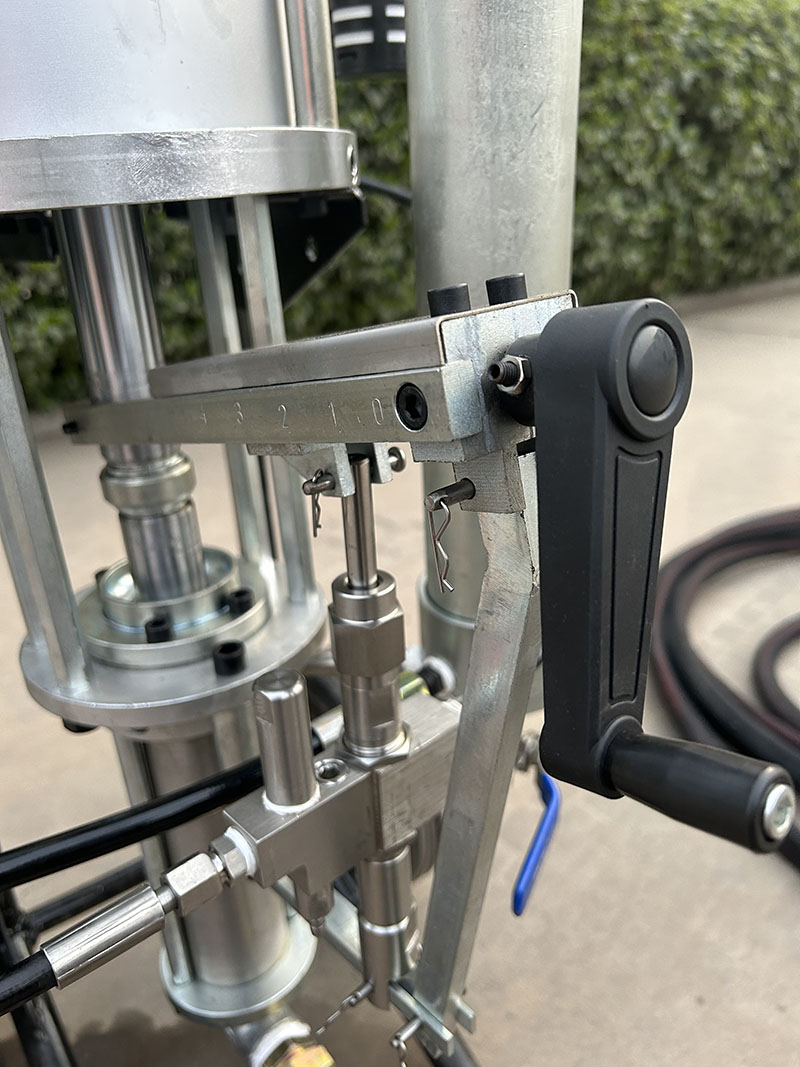

MK-ZJ Fiberglass Chop Spray Machine Images
