MK-ZZ Fiberglass Chop Spray Machine

To keep material costs low, the system has been designed so that it doesn’t need a surge bottle and a low amount of solvent and resin is needed to prime the pump. It also features a dual trigger function, allowing operators to change from wet-out to chop without removing the chopper.

Fiberglass chopper System for Open Molding Handle fiberglass and catalyzed resin with ease with  spray-up laminating components and systems. The FRP system can be used to apply chopped fiberglass on your open mold applications. It offers precise on-ratio dispensing with easy transition from wet-out to chop.

Fiberglass spray machine Mingko-ZZ
Compression ratio: 19:1 the ratio of air engine and the pump for feeding
Piston stoke :110mm
Air cylinder diameter:160mm
Standard Nozzle: 1.4 mm
 2.5L-6L/min spray resin .
Operating Pressure: 45 to 65 PSI (3.0 to 4.5 bar)
Pattern Width:  (200 to 500 mm)
Air Consumption: Above 23cfm .
Heavy Duty Pressure Feed Paint Tank Specifications:
Clamp on Lid with Gasket

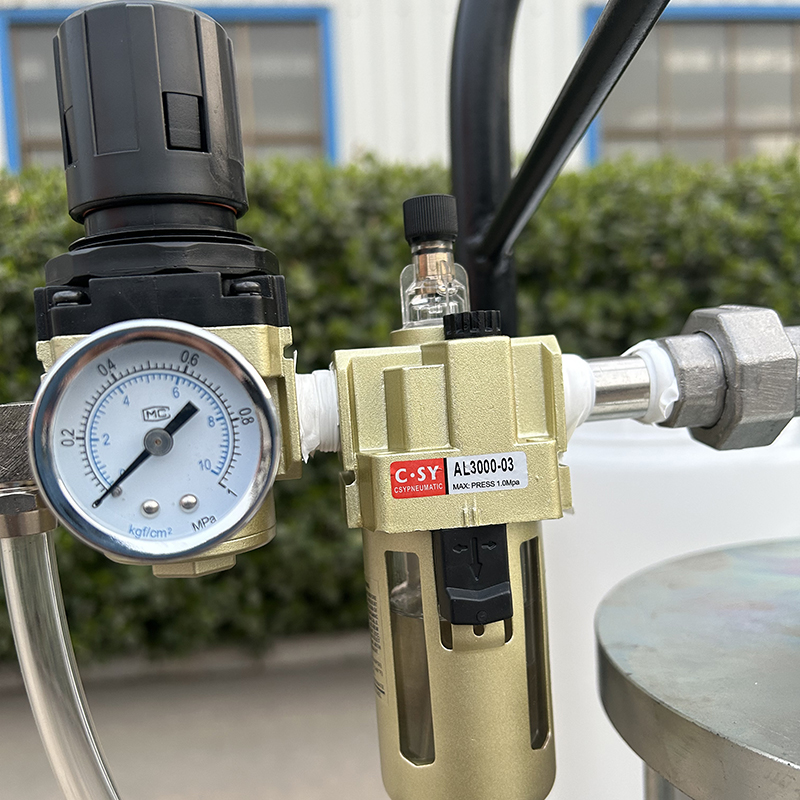

Fluid pressure regulator with gauge
 Hose Assembly: 15 meters Hoses,and Fluid Hoses
（3 meters resin feeding hose）
Air inlet: 16mm Fluid feeding inlet:19mm
 Air Pressure Relief Valve for Safety

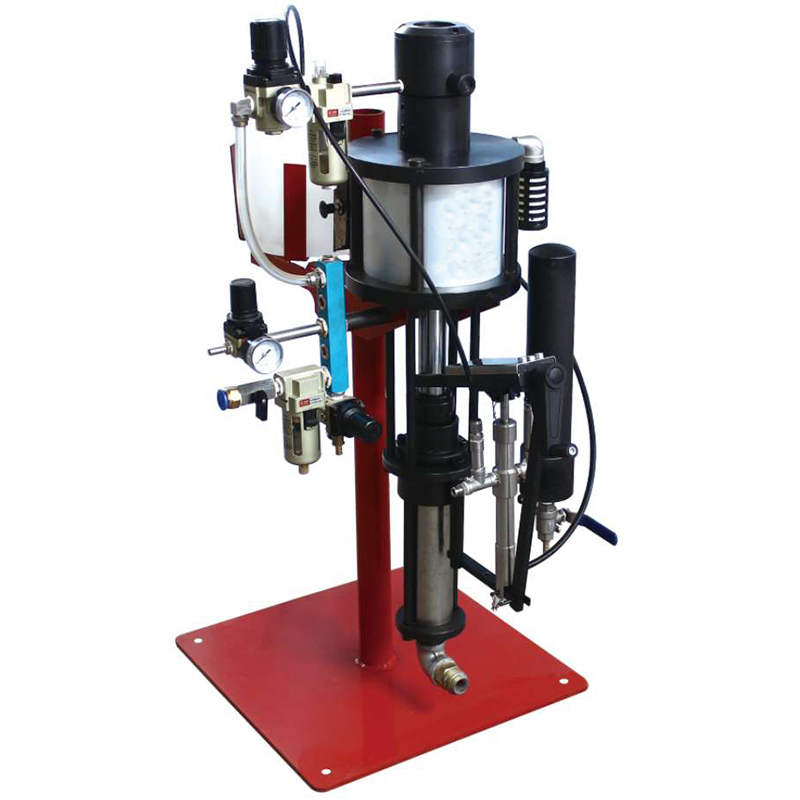

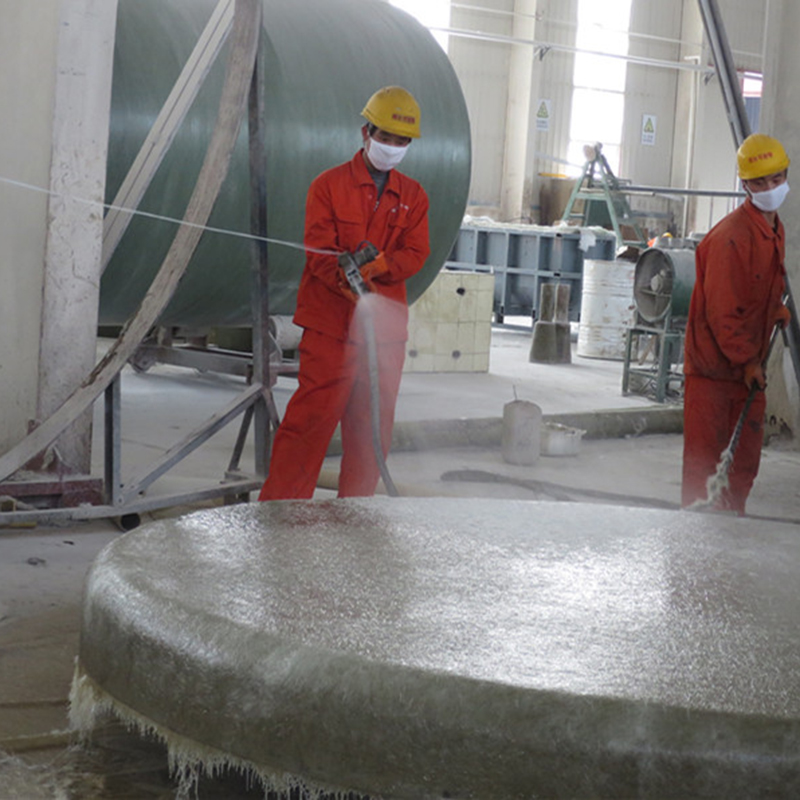

MK-ZZ Fiberglass Chop Spray Machine Images
