KFU Mining Tipping Cart
KFU Mining Tipping Cart
KFU Series Bucket-tipping dump Mine Cart is used for mine and construction, load stone, coal, minerals etc.
- Release Date:May 11 , 2023
- Category: Mining Transport Equipment
- Tags: coal mining cart | mining cart | underground mine cart |
KFU Mining Tipping Cart
KFU Series Bucket-tipping dump Mine Cart is used for mine and construction, load stone, coal, minerals etc.
KFU Series Bucket-tipping Mine Cars are suitable for surface and underground mining of metal mine or other mine, to transport the ore, waste rocks and other materials along the underground tunnels and the surface working site.
The bucket-tipping mine car is designed by "U" & "V" shape hopper plate. It is widely used in the mining sites or construction sites.
Characteristic:
1.High Stress area welds eliminated;
2.Mass and section thickness optimized;
3.Simplified state of the art mainframe and easy to operate;
4.Easy replacement of wear and spare parts.
KFU Mining Tipping Cart Parameter
| MODEL | VOLUME | LOAD | GAUGE | WHEEL | WHEEL | TRACTION | TRACTION | OVERALL SIZE |
| BASE | DIAMETER | HEIGHT | ||||||
| (M3) | (T) | (MM) | (MM) | (MM) | (KN) | (MM) | (LXWXH) | |
| KFU0.55-6 | 0.55 | 1.3 | 600 | 500 | 300 | 60 | 320 | 1552*850*1150 |
| KFU0.75-6 | 0.75 | 1.88 | 600 | 600 | 300 | 60 | 320 | 1700*980*1250 |
| KFU1.0-6 | 1 | 2 | 600 | 600 | 300 | 60 | 320 | 1910*1070*130 |
| KFU1.2-6 | 1.2 | 3 | 600 | 700 | 300 | 60 | 320 | 2228*1070*1320 |

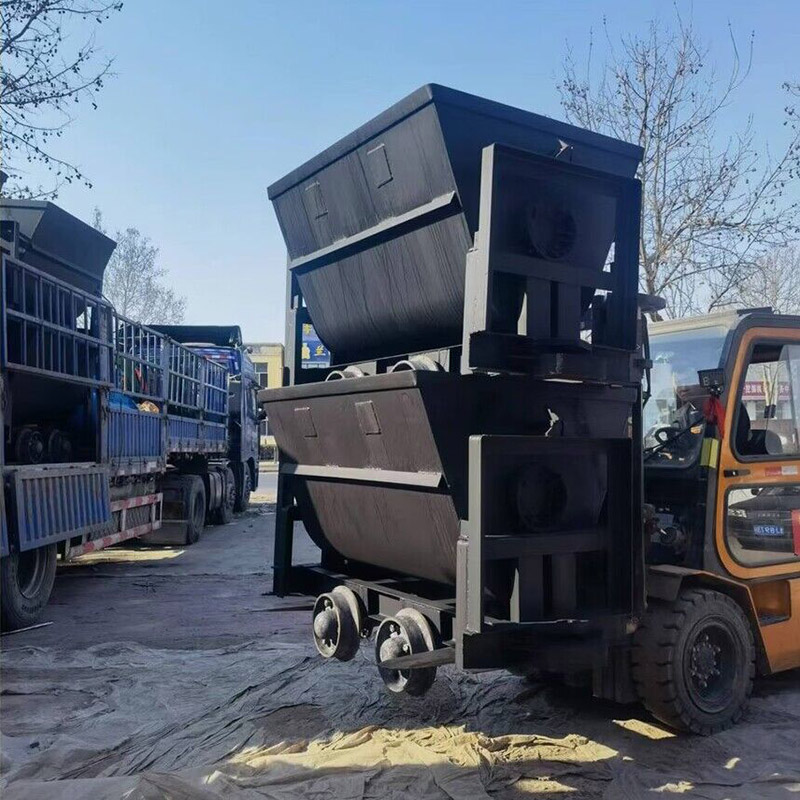

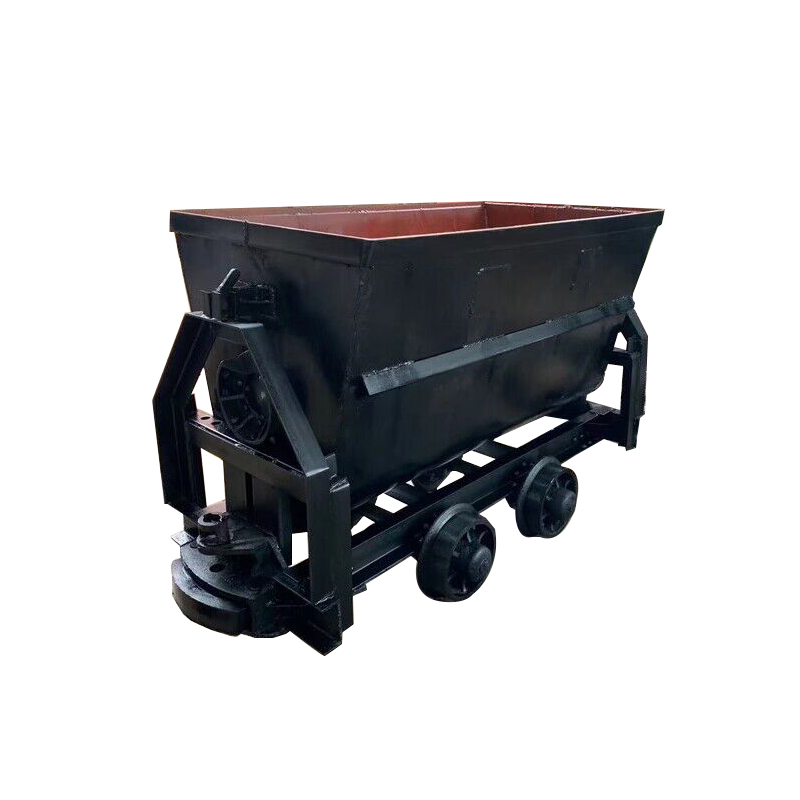

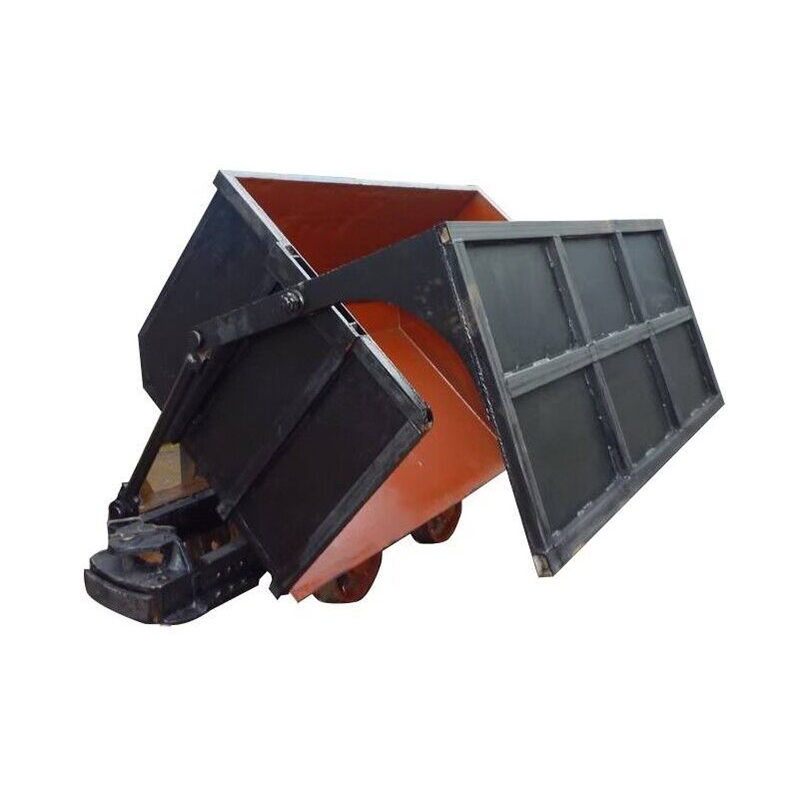

KFU Mining Tipping Cart Images
