Bottom Tipping Mine Cart
Bottom Tipping Mine Cart
A transportation tool for moving coal ,ore,wasted rock and material in the process of mining,dragged by a locomotive or winch.
- Release Date:May 13 , 2023
- Category: Mining Transport Equipment
- Tags: underground mine cart | mining rail cart | mine cart for sale |
Bottom Tipping Mine Cart:
A transportation tool for moving coal ,ore,wasted rock and material in the process of mining,dragged by a locomotive or winch.
Used in suface and underground mining of metal mine or other mine,to transport the ore wasted rocks and other materials along the underground tunnels and the surface working site.
Features :
Running smoothly on curve or straight rail .
Adpoted welding structure,withstand the traction,enhence service life.
Made by high quality steel,technical conditions meets JB/T6992 -1993.Mass and section thickness optimized.
Bottom Tipping Mine Cart Parameter
|
Model |
Volume m³ |
Loading t |
Gauge mm |
Overall Dia |
Wheel Base mm |
Wheel Dia mm |
Tracktion Height mm |
Rated Tracktion KN |
Unloading Angle °
|
Weight kg |
Thikness mm |
Min Curve Radius m |
||
|
L mm |
W mm |
H mm |
||||||||||||
|
MDC-3.3/6 |
33 m³ |
5.3 |
600 |
3450 |
1200 |
1380 |
1100 |
350 |
320 |
60 |
50°
|
1687 |
5 |
15 |

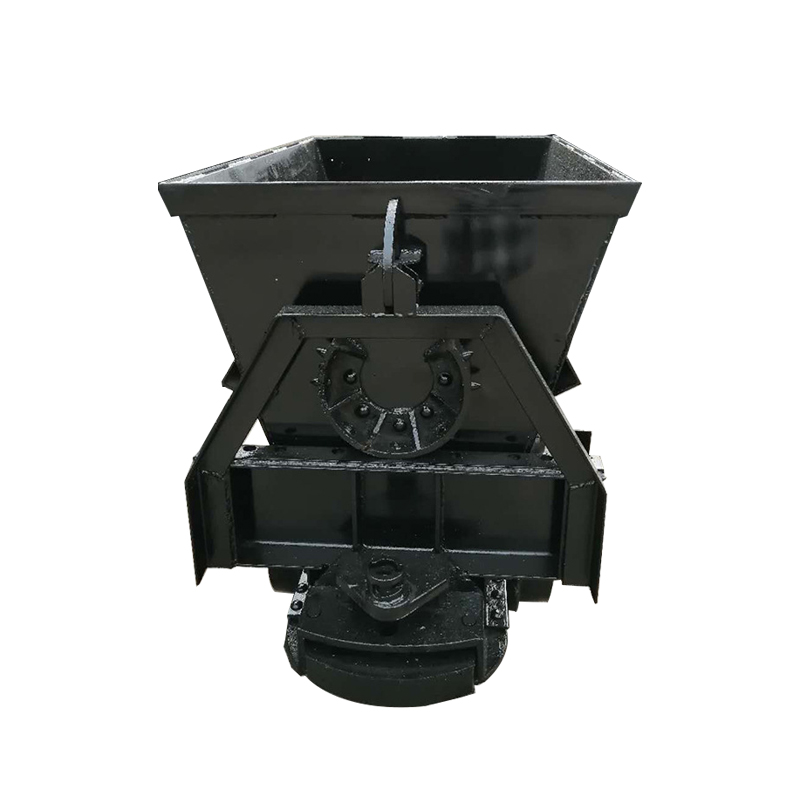

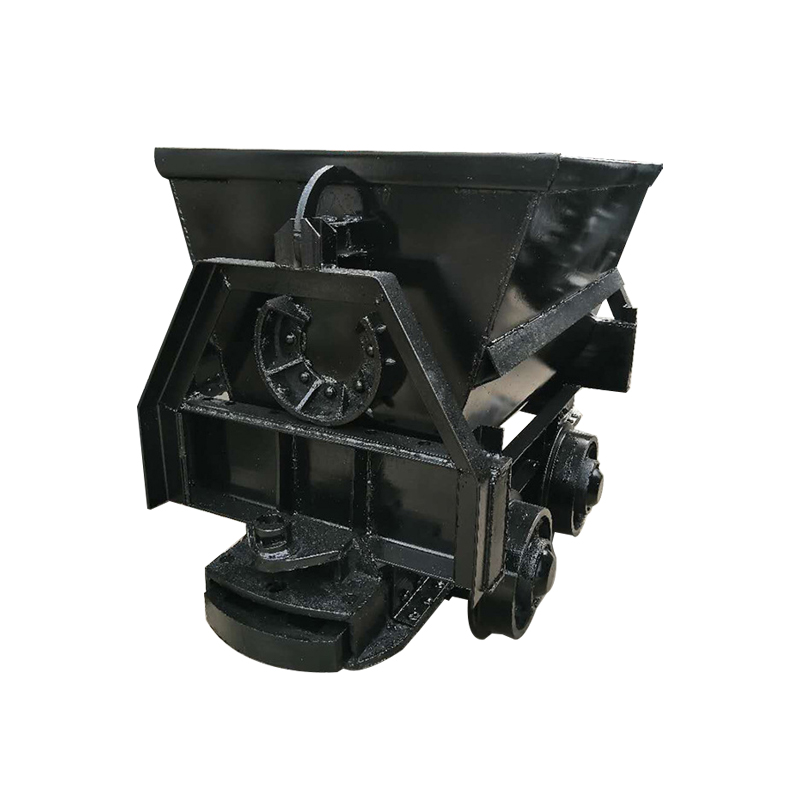

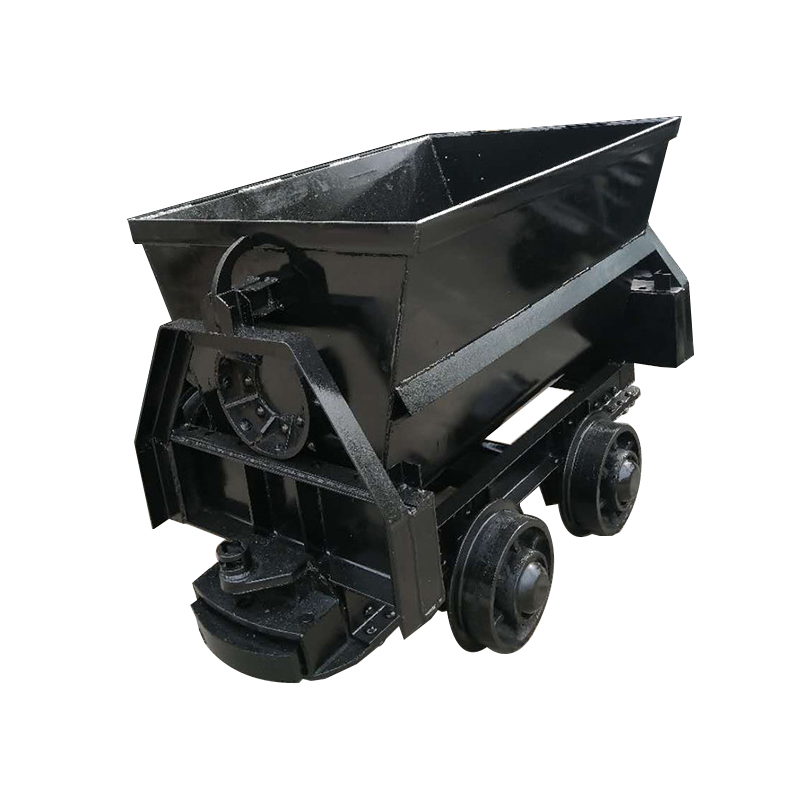

Bottom Tipping Mine Cart Images
