MK320C Mini Skid Steer Track Loader
MK320C Mini Skid Steer Track Loader
MK320C Mini Stand Behind Skid Steer Fit into small spaces and are lightweight
- Release Date:July 10 , 2023
- Category: Construction Loader
- Tags: stand behind skid steer | mini track loader | cheap mini skid steer loader |
MK320C Mini Skid Steer Track Loader
MK320C is highly maneuverable, small and versatile machine, it is the right choice for your doing job in confined space
Replace manual labor, toss out the hand tools and get more done in hard-to-access work areas. Easy-to-use mini MK320C loader travel and work where other machines can’t, making them a popular choice for landscapers, contractors, renters and others. Don’t be fooled by the small size. They do serious work: digging, trenching, tilling, moving material and more.
MK320C Mini Skid Steer Track Loader Parameter
|
Ltem |
MK320 |
|
|
|
Tire Type |
|
|
|
Metric |
U.S. |
|
Max working height (H3) |
2504 mm |
98.58 inch |
|
Max pin height (H2) |
1951 mm |
76.81 inch |
|
Max Dumping height (H1) |
1423 mm |
56.02 inch |
|
Max Dumping distance(E) |
100 mm |
3.94 inch |
|
Max Dumping Angle (a3) |
53° |
53° |
|
Rollback of bucket on ground (a2) |
32° |
32° |
|
Departure angle (a1) |
17° |
17° |
|
Total height (H) |
1210 mm |
47.64 inch |
|
Ground clearance (F) |
133.5 mm |
5.26 inch |
|
Wheel base (L1) |
653 mm |
25.71 inch |
|
Overall length without bucket (L3) |
1552 mm |
61.1 inch |
|
Total width (B2) |
820 mm |
32 inch |
|
Bucket width (B1) |
990 mm |
38.97inch |
|
Total length with bucket (L) |
1992 mm |
78.43 inch |
|
Turn radius forward turning (R) |
1205 mm |
47.44 inch |
|
|
|
|
|
Engine |
|
|
|
Rated Power (KW) |
10KW(13.5HP) |
|
|
Rotating speed (rpm) |
3600 |
|
|
Noise (Db) |
≤95 |
|
|
Hydraulic System |
|
|
|
Pressure (Mpa) |
17 |
|
|
Working Time (s) |
|
|
|
Raise |
4 |
|
|
Dump |
1.3 |
|
|
Lower |
3.2 |
|
|
Operating Load |
260 Kg |
573.2 Lb |
|
Bucket Capacity |
0.08 m³ |
3 ft³ |
|
Max Lifting Force |
300 Kg |
661.39 Lb |
|
Travel Speed |
0-6 Km/h |
3.73 mlie/h |
|
Operating Weight |
640 Kg |
1410 Lb |

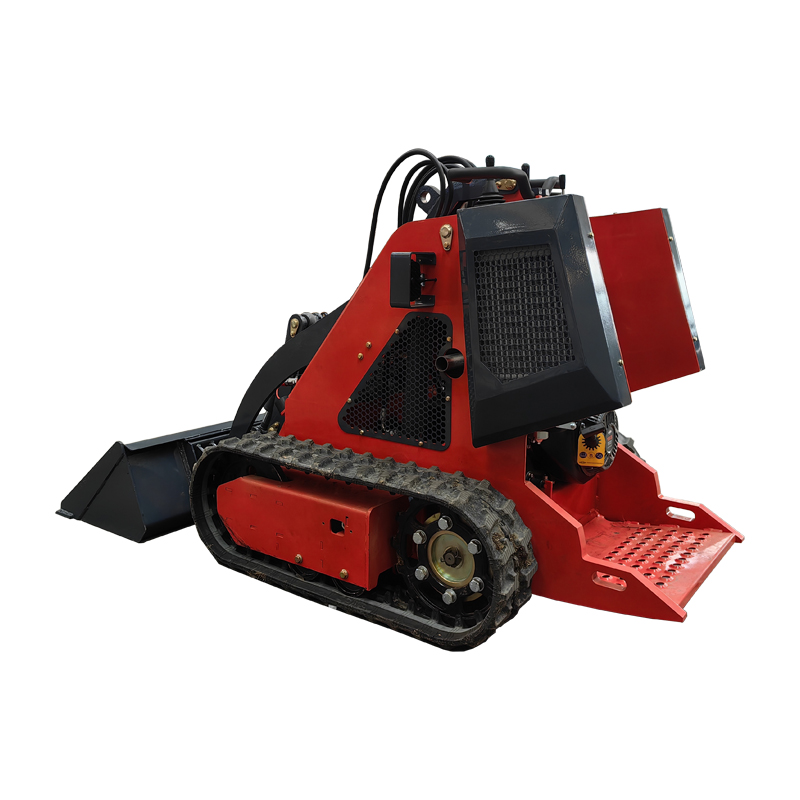

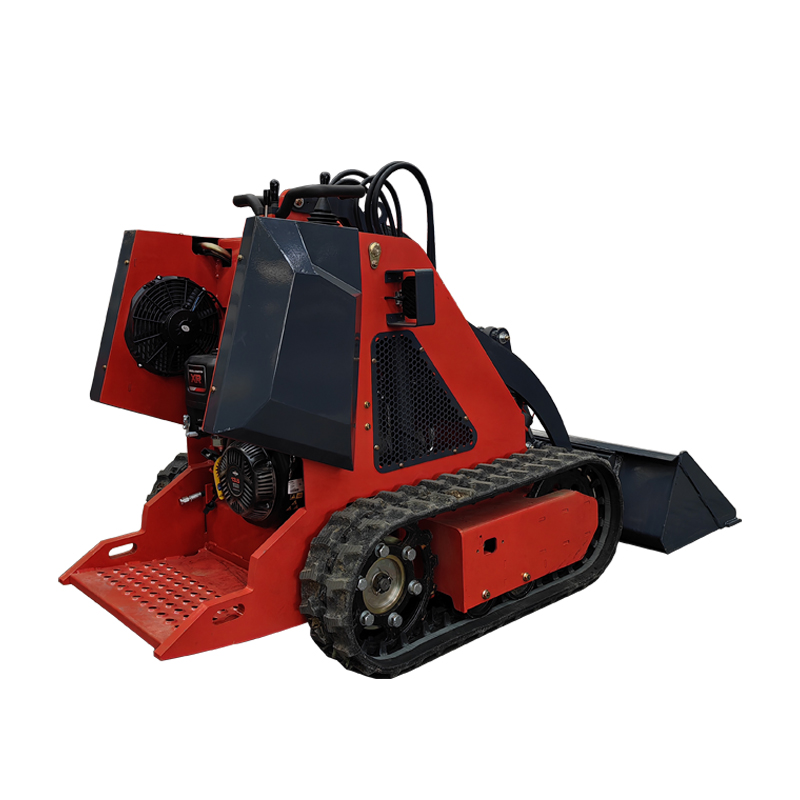

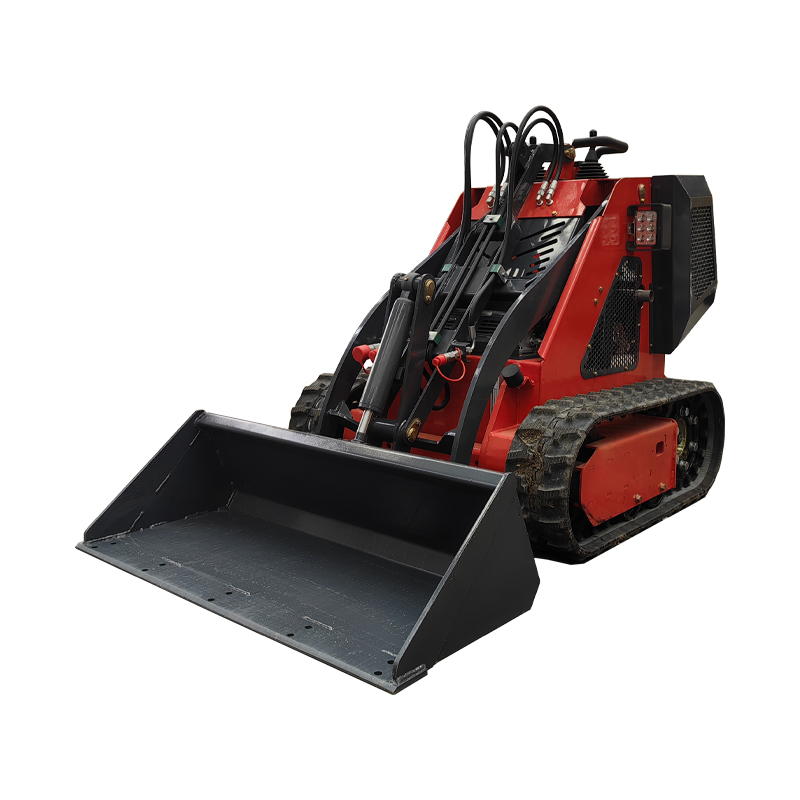

MK320C Mini Skid Steer Track Loader Images
Contact us for a quote！
