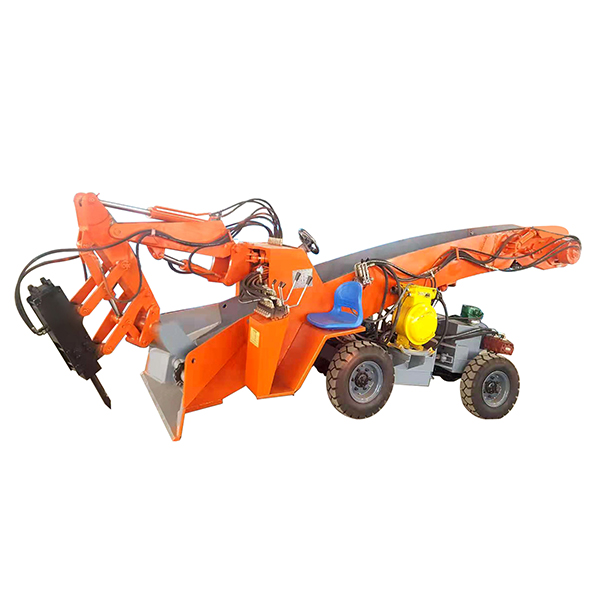

MK60/80-S Wheel tunnel Mucking Loader is narrow size mucking loader which can work underground for mining

MK60WS/80WS Wheel Mucking Loader

Advantage of the MK60WS/80WS Wheel Belt Mucking Loader:

Main Pump:China Famous Brand

Hydraulic Pilot Control :Control pilot hydraulic oil through two handles

Gas alarm device:
When the gas concentration exceeds the set value, the system detects and automatically alarms
The travelling motor is  designed in the front to reduce the load to tensioning device from the guide wheel when equipment climbing

Working arm :
The structure parts of the big and small arm can be adjustable to adpat different working sections
The portal frame is connected with the conveying trough ,to extend the working range and the height of arm to remove danger
The bush is made by NSK(Japan),reducing the wearing of pin rolls and bushes ,better for maintenance
Underground mining mucking loader is also called excavating loader, integrates multiple functions including excavation, conveying, loading, running, Because of its high working efficiency, strong ability to adapt the space, less polluting to the air inside of the tunnel, it becomes a very important mechanical equipment in tunnel construction.Wheeled  machine wide range (from left to right range of up to 4.5 meters, up to 2.8 meters on the ground, the ground up to 0.8 meters) ,It can be full-face loading of gravel, leaving no dead ends, do not need to manually clean up Site, people can also dig on both sides of the roadway ditch.

Technical Specification:

Item MK60WS MK80WS
Excavating Width(mm) ≥4200
Coverage(mm) ≥1600
Excavating Height(mm) 1800-2700 ≥2800
Excavating Depth (mm) ≥450
Unload height(mm)
1350-1750 1350-1650
Max unload height(mm) 1100 1200
Unload Distance(mm) 1600 1700
Machine Weight(T) 6.2 8.6
Overall Dimension L*H*H (mm) 5800*1650*1700 6000*1700*1650
Loading Capacity( m³/H) 60 80
Min Turing Radius (mm) 4500 4500
Climb Gradient(°) ≤10
Travelling Speed (Km/h) 2-4.5 2-4.5
Ground Clearance(mm) 200 260
Rated Working Pressure (MPa) 16/25 16/25
Motor Power(Kw) 18.5/22 22/30
Max Materials Size Passing L*W*H (mm) 810*580*500 810*580*500
Applicable Section W*H (m) ≥20.*2.0
